1U Thermal Solution
76
Collaboration thermal solution Ψca (mean+3sigma) is computed to 0.319°C/W at the
airflow of 15 CFM. As the Table 9-1 shown when T
LA
is 40 °C, equation representing
thermal solution of this heatsink is calculated as:
Y=0.319*X+40
where,
Y = Processor T
CASE
Value (°C)
X = Processor Power Value (W)
Table 9-2 shows thermal solution performance is compliant with Intel
®
Xeon
®
processor E3-1280 (95W) TTV thermal profile specification. At the TDP (95W) with
local ambient of 40°C, there is a 3.3°C margin.

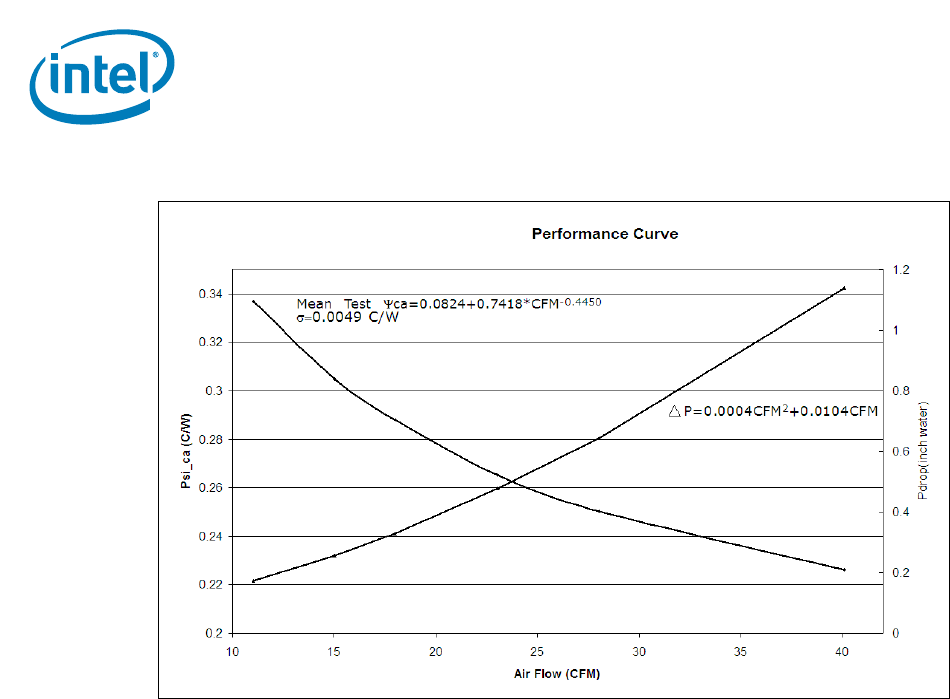

Figure 9-1. 1U Collaboration Heatsink Performance Curves
