Agilent 87130A Operating and Service Manual 2-3
Installing the 87130A Attenuator/Switch Driver
Getting Started
GPIB Addressing 3. Use the five-bit binary address switches located on the rear panel of the
instrument to change the GPIB address.
❍ The 87130A has a factory preset address of 9. There are 32 possible
addresses. The switch labeled with a one is the least significant bit.
❍ Addresses 0 and 31 are typically reserved for GPIB functions and
should not be used. IEEE-488.1 limits the number of addressable
elements (instruments) to 16.

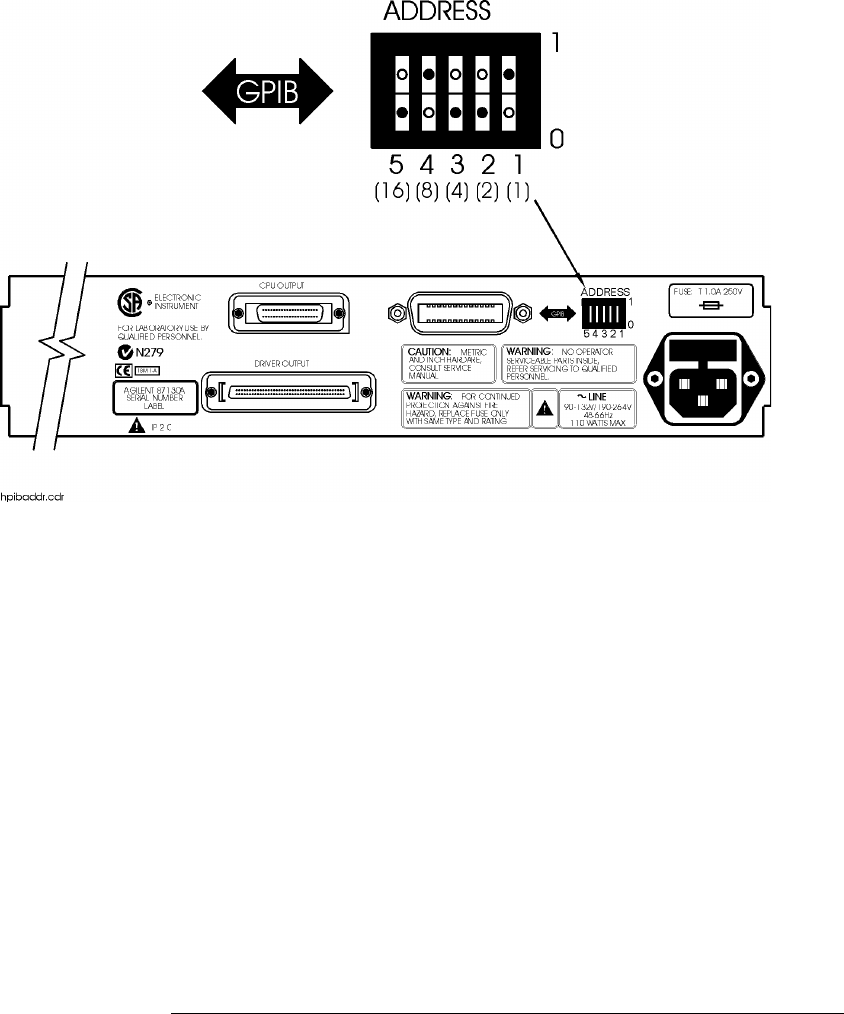

Figure 2-1 87130A GPIB Address Switch (Default 9 shown)
