12. Alignment menu
How to set for the second projector

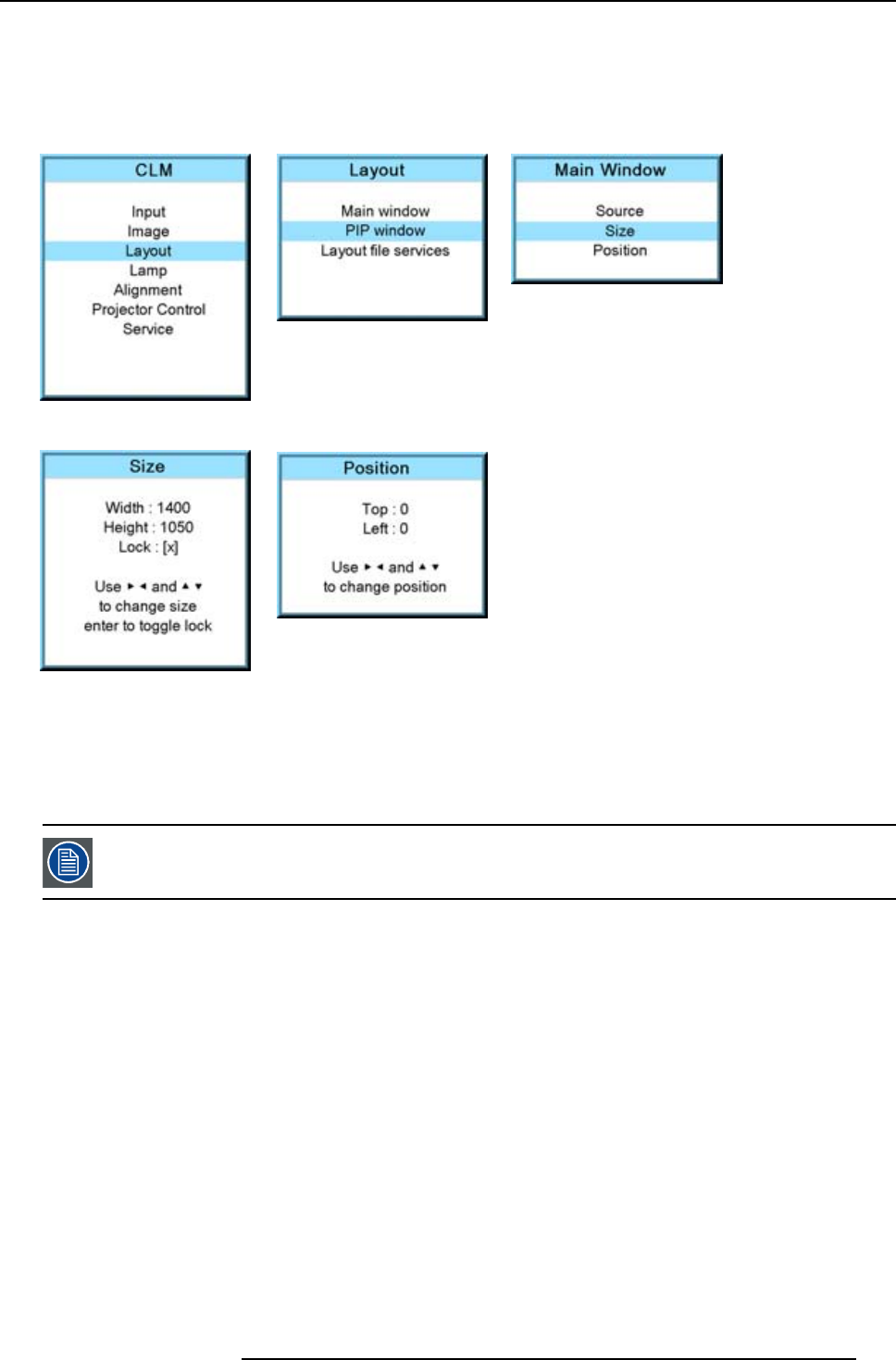

1. Go to Layout → Main window → Size
2. Enter the value for the Width as follow: Total Vertical screen resolution / 2 - 0.5 x overlap zone.
3. Position = original start + Vertical height projector 1 - overlap zone
Image 12-58
Image 12-59
Image 12-60
Image 12-61
Image 12-62
12.11.7 ScenergiX size adjustment (White level)
What can be done with the white level menu?
The white level menu contains top, bottom, left or right item to set the blending zone.
The ScenergiX menu items are only accessible when status is [On].
How to set the blending zone?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Alignment and press ENTER.
3. Use the ▲ or ▼ key to select ScenergiX and press ENTER.
4. Use the ▲ or ▼ key to select White level and press ENTER.
5. Use the ▲ or ▼ key to select one of the four size adjustments and press ENTER.
R59770057 CLM HD8 15/03/2010
129
