17. Projector covers, removal and installation
3. Fasten the captive screw at the middle bottom of the front cover (C).
C

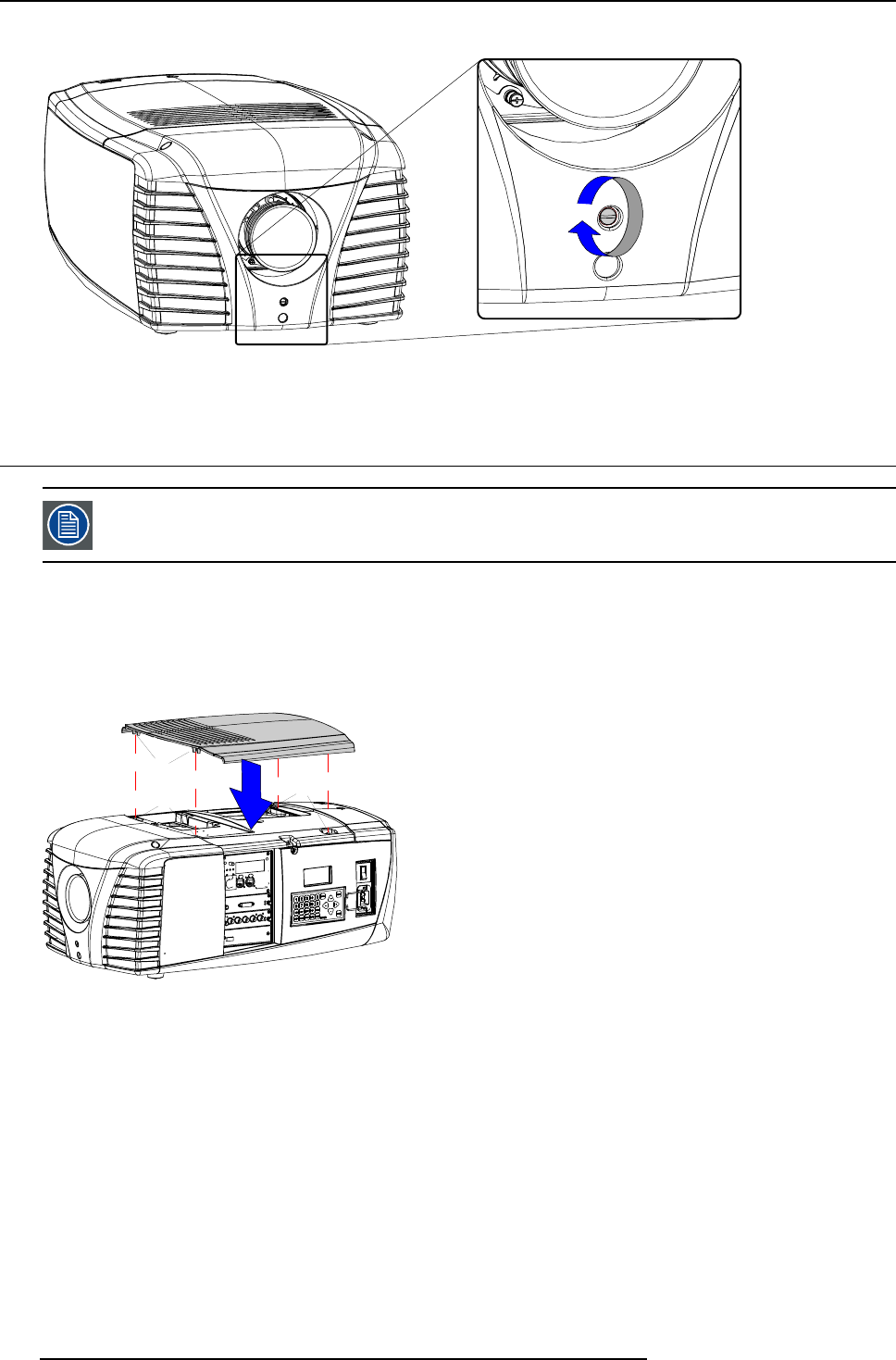

Image 17-16
Secure front cover
17.10 Installation of the lamp door
Lamp door can only be installed when the top cover is installed.
Necessary tools
Flat screwdriver
How to install the lamp door
1. Place the lamp door with its pins (B) on its sockets (A) and push
on it until clicks
A
A
B
Image 17-17
Lamp door installation
2. Fasten the captive screw at the middle upper side of the side cover on the input side.
188
R59770057 CLM HD8 15/03/2010
