D. Specifications
D.2 Specifications CLM 5 cable input (multi purpose)

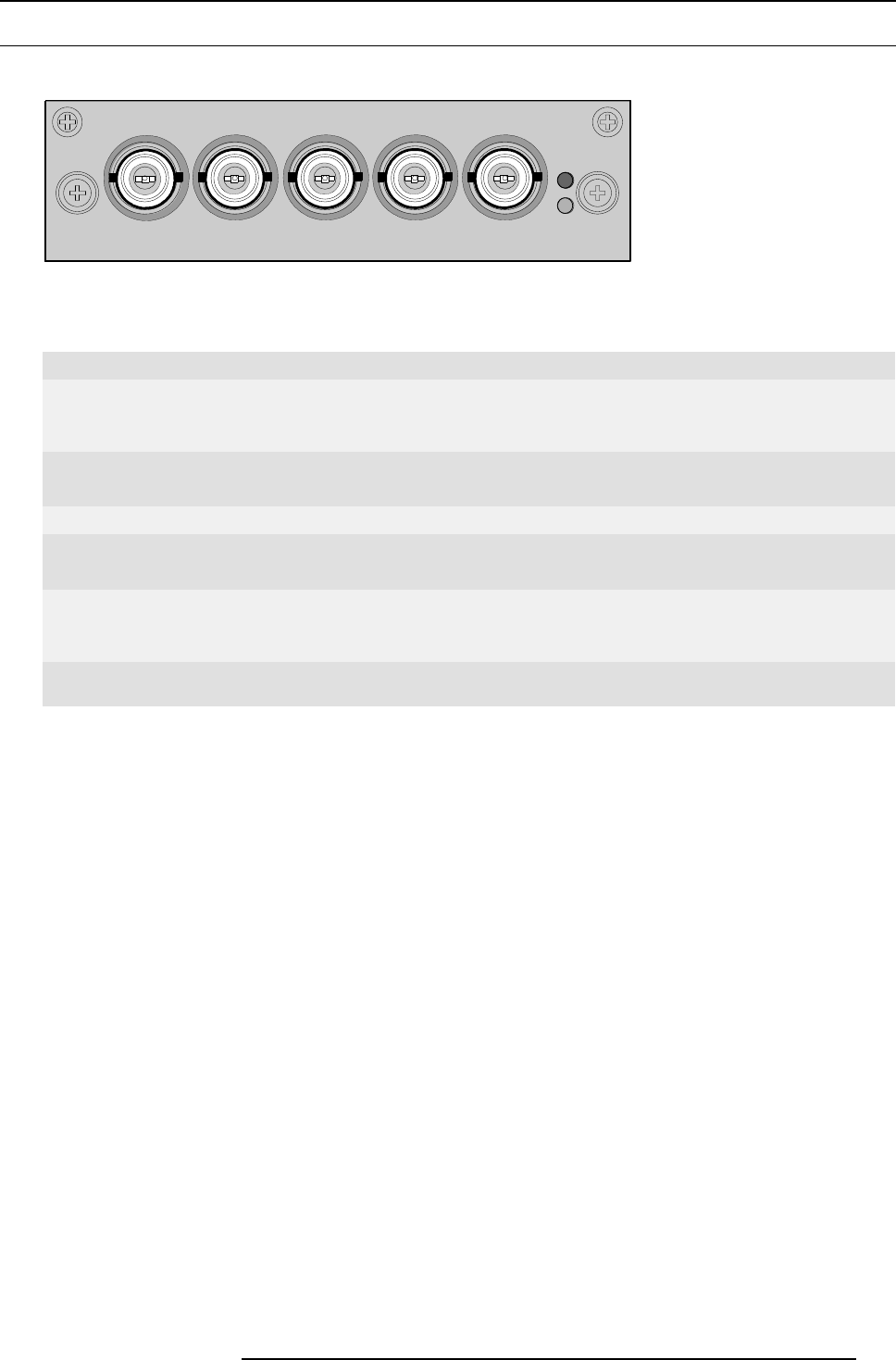

Front view 5 cable input
SYCN OK
SEL
5-CABLE INPUT
R/P
R
G/Y/VIDEO B/P
B
H/S V/C
R
Image D-1
Signal connectivity
Input signal
R/P
R
G/Y/VIDEO B/P
B
H/S V/C
R
RGBHV
R
G
BHV
RGBS
R
G
B
S
composite sync or VIDEO
as sync
—
RGsB R Gs
sync on green
B
——
Composite Video
—
VIDEO
———
Super Video
—
Y
Luma
——
C
Chroma
Component Video
-SS
P
R
/(R-Y)
Y
P
B
/(B-Y) S
composite sync or VIDEO
as sync
—
Component Video
-SOY
P
R
/ (R - Y) Ys P
B
/(B-Y)
——
Specifi cations
• Data and HD sources RGB and YUV [HS/VS, CS or SOG(Y)]:
- Pixel clock maximum 275 MHz
- 8 bit digital output
• Video sources CVBS, S-VIDEO, RGB and YUV [CS, CV or SOG(Y)]:
- PAL B/D/I/G/H, PAL60, PAL M, PAL N, PAL Nc
- NTSC M/J, NTSC 4.43
- SECAM B/D/G/K/L
- 525i, 625i, 525p, 625p
- Macrovision copy protection robust
- 10 bit digital output
- Standard images “video525” and “video625”
• Automatic detection of sync inputs but with manual override:
- automatic modes : RGB, YUV, VIDEO
- manual modes : RGB HS/VS - CS, RGB CV, RGB SOG, YUV HS/VS - CS, YUV CV, YUV SOY, CVBS, S-VIDEO
• Possible to disconnect 75 Ohm terminations on HS and VS (TTL sync level selection)
• Signal requirements:
- Component Video (BNC)
o
R-Y : 0,7Vpp ±3dB 75 Ohm termination.
o
Ys : 1Vpp ±3dB (0,7V Luma +0,3V Sync) 75 Ohm termination.
o
B-Y : 0,7Vpp ±3dB 75 Ohm termination.
-RG(s)B
o
R : 0,7Vpp ±3dB 75 Ohm termination.
o
G(s) : 1Vpp ±3dB (0,7Vpp G + 0,3Vpp Sync) 75 Ohm termination.
o
B : 0,7Vpp ±3dB 75 Ohm termination.
R59770057 CLM HD8 15/03/2010
