3. Physical installation
S
C
S
Image 3-6

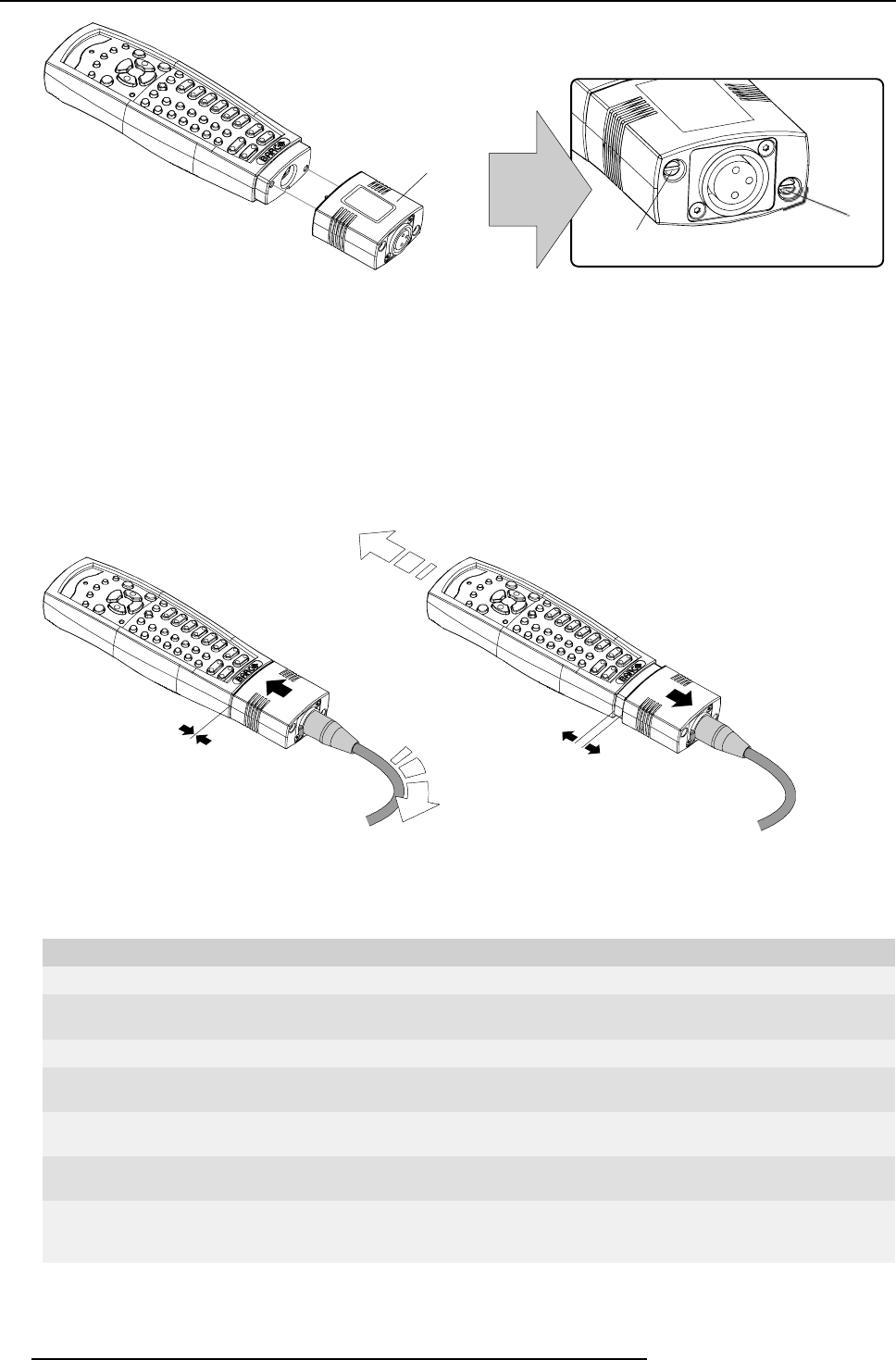

Mounting the XLR adapter
2. Fasten the two screws (S) of the XLR adaptor. Turn each screw repeatedly one or two turns until both screws are tight.
3.1.4 Using the XLR adaptor of the RCU
How to use the XLR adaptor of the remote control unit ?
1. Connect a cable with XLR plug into the XLR adaptor.
2. Connect the other end of the cable with your CLM HD8.
3. Push the XLR adaptor completely against the rugged case of the remote control unit, as illustrated in the left image below, for
wired communication. Pull out the XLR adaptor (about 8 mm) to switch over to wireless communication.
Image 3-7
3.1.5 RCU usage possibilities
Summarized possibilities
Ref.
Possibility description
Comment
a.
RCU not wired
b.
RCU wired (mini-jack) Backlight illuminates continuously whe
n wire is connected. Infra red
disabled.
c.
RCU with rugged case not wired
d. RCU with rugged case wired (mini-jack) Backlight illuminates continuously when wire is connected. Infra red
disabled.
e.
RCU with rugged case and XLR adaptor
pulled out “REMOTE” and not wired
The XLR adaptor must be in the pulled out position “REMOTE”, otherwise
the RCU will not function.
f. RCU with rugged case and XLR adapto
r
pulled out “REMOTE” and wired
The RCU will send the commands via i
nfra red to the projector.
g.
RCU with rugged case and XLR adaptor
pushed in “WIRED” and wired
The RCU will send the commands via the cable connected with the XLR
adaptor to the projector. Backlight illuminates continuously when wire
is connected. Infra red disable
d.
