7. Start up of the adjustment mode
The main menu of the adjustment mode opens.

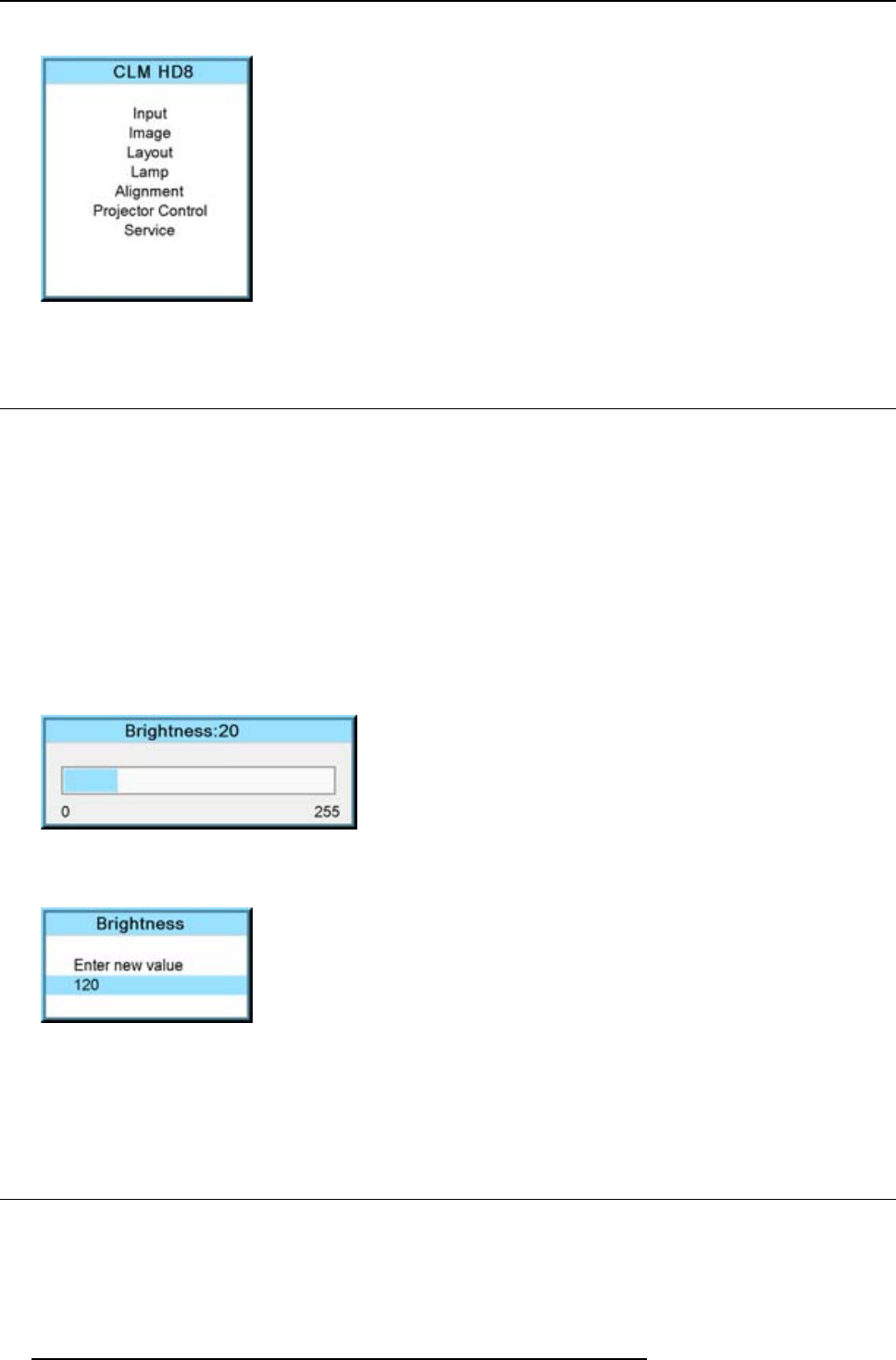

Image 7-1
7.4 Navigation and adjustments
How to navigate in the menu structure?
Once in the menu structure, use the or keys on the remote control (or the or (+ or -) key on the local keypad) to scroll
through the items in the displayed menu. The selected item will get a background color. To activate a selected submenu or function,
press ENTER.
When on a submenu, to return one step to the parent menu, press EXIT.
To escape the menu structure when on a menu, press MENU.
How to make an adjustment?
With the remote control, press the or keys until the desired value (setup) is reached. Press EXIT to nalize the adjustment.
With thelocal keypad, press the or (+ or -)keys untilthe desired value (setup)is reached. Press EXIT tonalize the adjustment.
All adjustments will be indicated with an on-screen box with the name of the adjustment in the title bar, the length of the progress
bar indicates the actual value. The value at the start and at the end of the progress bar indicates the adjustment ranges.
Image 7-2
While a bar scale is displayed, it is also possible to enter the desired value directly with the digit keys. Therefore, press ENTER.
The menu changes to a Enter new value menu with the current value lled out. The rst digit is selected.
Image 7-3
Use the or key to jump to the next digit or enter a new value for the selected digit with the digit keys and then the selection will
jump also to the next digit. Repeat this action for all other digits and press ENTER to nalize the input.
If applicable in direct input, toggle between + and - with the left arrow key ().
7.5 On screen menus versus LCD display menus
Overview
As the projector is equipped with an 8 lines LCD panel, the on-screen menus are also displayed on that LCD panel in the same
structure as the on screen menus. These menus can be used in the same way as the on-screen menus.
The menus on the LCD panel are st
ill reachable even when the projector lamp is not activated and when Text is in the off mode.
