14. Service menu

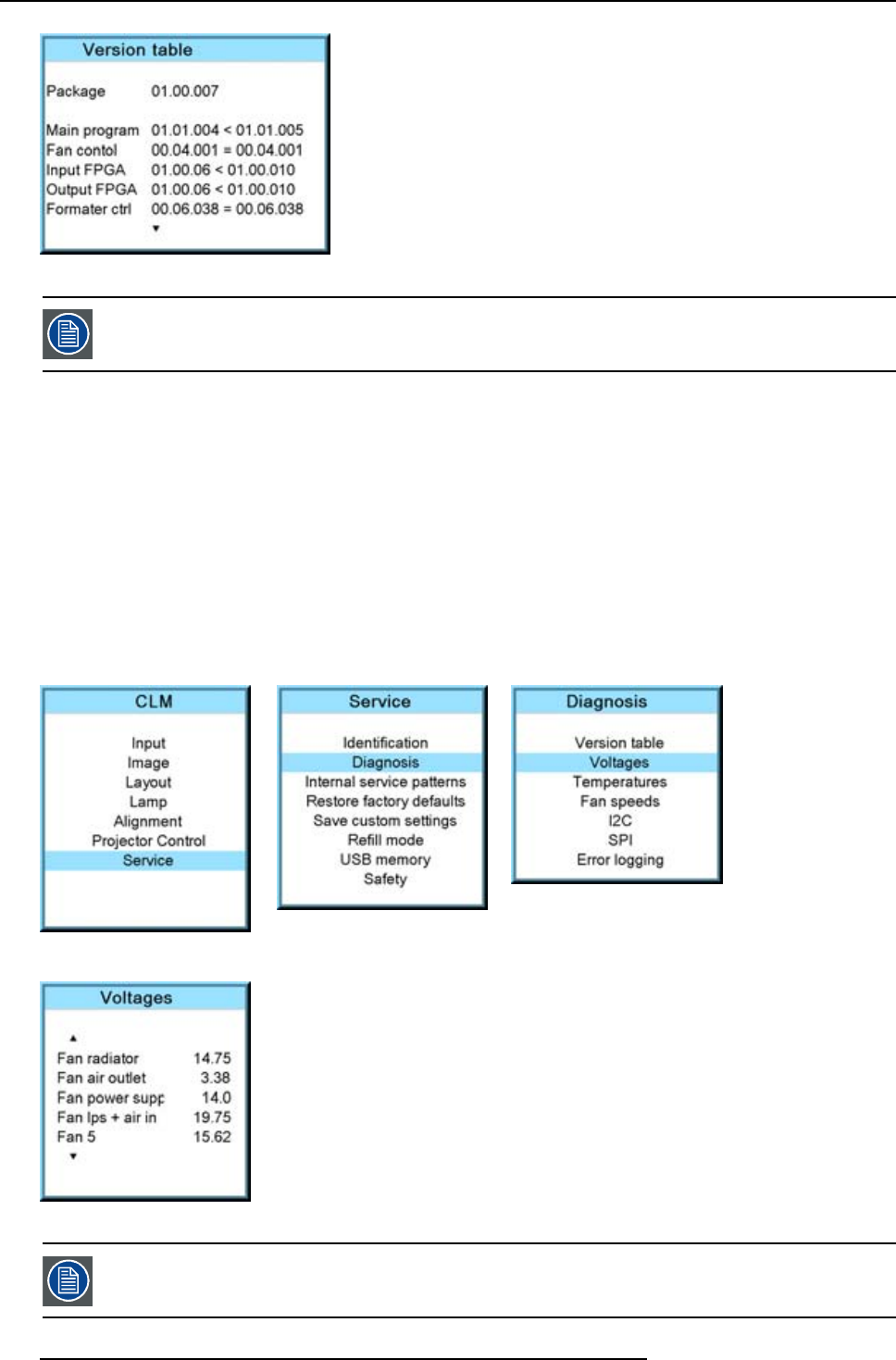

Image 14-11
Use the or item in the menu to select the previous or next page with information.
14.3.3 Voltages
How to display an overview?
1. Press MENU to activate the menus.
2. Use the or key to select Service and press ENTER.
The service window opens.
3. Use the or key to select Diagnosis and press ENTER.
The diagnosis screen will be displayed.
4. Use the or key to select Voltages and press ENTER.
The Voltage overview menu will be displayed.
Image 14-12
Image 14-13
Image 14-14
Image 14-15
Use the or item in the menu to select the previous or next page with information.
