D. Specifications
D.4 Specifications CLM DVI input

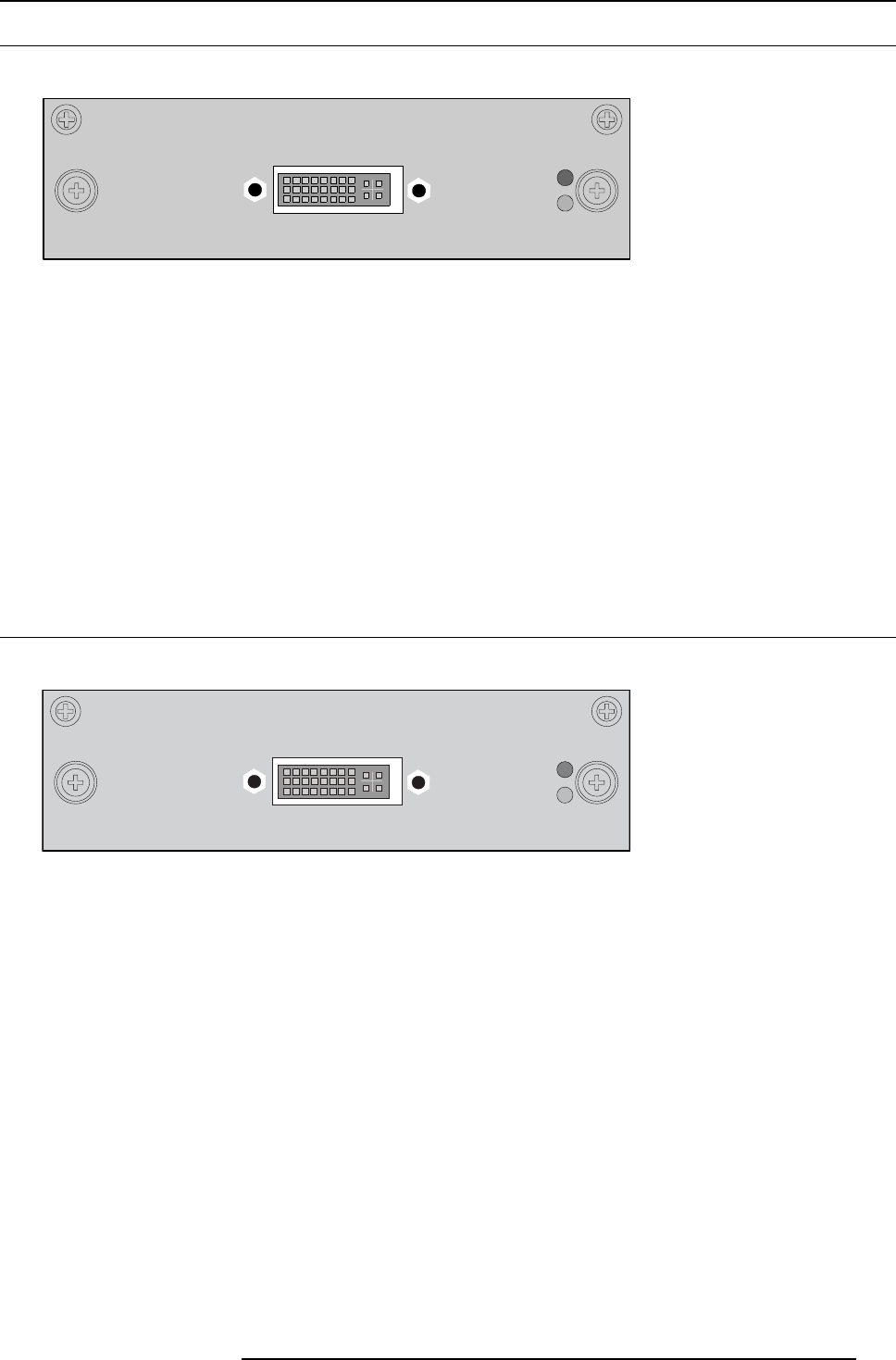

Input front view
Sync OK
Sel
DVI input
Image D-3
Specifi cations
• DVI type: DVI-I (DVI-Integrated), but the analog signals are not supported. Single-link configuration.
• Single link dvi for pixelclocks up to 165MHz
• Vertical frequencies: 24 - 75 Hz
• Horizontal frequencies: 20 - 90 kHz
• Supported resolutions: up to UXGA (1600 x 1200) at 60 Hz.
• Cable lengths: up to 3 meter at UXGA speed.
• Compliance: DDC2B support according to VESA EDID Version 1.2
• Diagnostic LED’s on front panel:
- Green LED: Lights up in case input module is selected
- Yellow LED: Lights up in case sync detected
D.5 Specifications CLM DVI HDCP input
Input front view
Sync OK
Sel
HDCP DVI input
Image D-4
Specifi cations
• DVI type: DVI-I (DVI-Integrated), but the analog signals are not supported. Single-link configuration.
• Supports UXGA Resolution (1600 x 1200) (Output Pixel Rates up to 165 MHz)
• True-Color, 24 Bits/Pixel, 48-Bit Dual Pixel Output Mode, 16.7M Colors at 1 or 2 Pixels Per Clock
• Digital Visual Interface (DVI) and High-Bandwidth Digital Content Protection (HDCP) Specification Compliant
• Vertical frequencies: 24 - 75 Hz
• Horizontal frequencies: 20 - 90 kHz
• Cable lengths: up to 3 meter at UXGA speed.
• Compliance: DDC2B support according to VESA EDID Version 1.2
• Diagnostic LED’s on front panel:
- Green LED: Lights up in case input module is selected
- Yellow LED: Lights up in case sync detected
