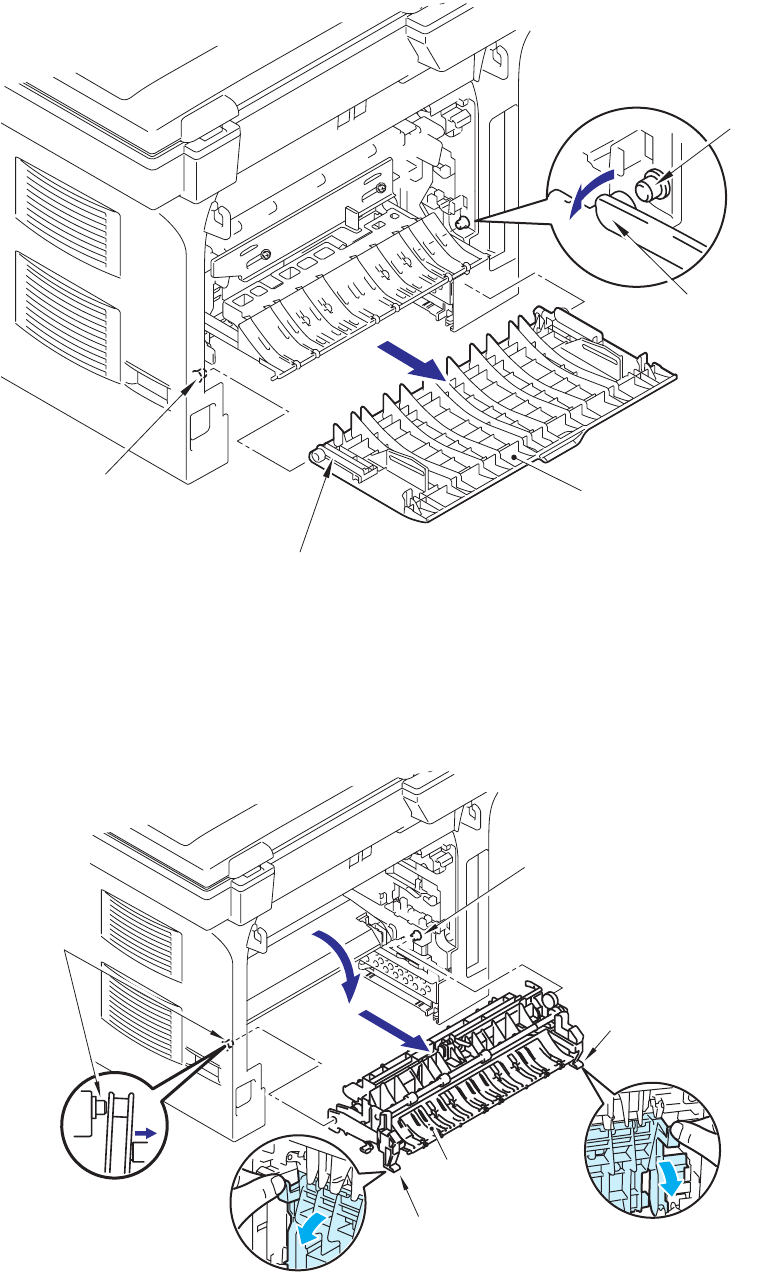

(3) Remove the Arms of the Back cover from the Pins.
(4) Remove the Back cover.
Fig. 4-2
(5) Hold the Knobs on the Rear chute ASSY and pull down this to your side.
(6) Remove the Arms of the Rear chute ASSY from the Pins.
(7) Remove the Rear chute ASSY.
Fig. 4-3
Back cover
Pin
Arm
Arm
Pin
Pin
Pin
Knob
Knob
Rear chute ASSY
5
6
7
