5-145
Confidential

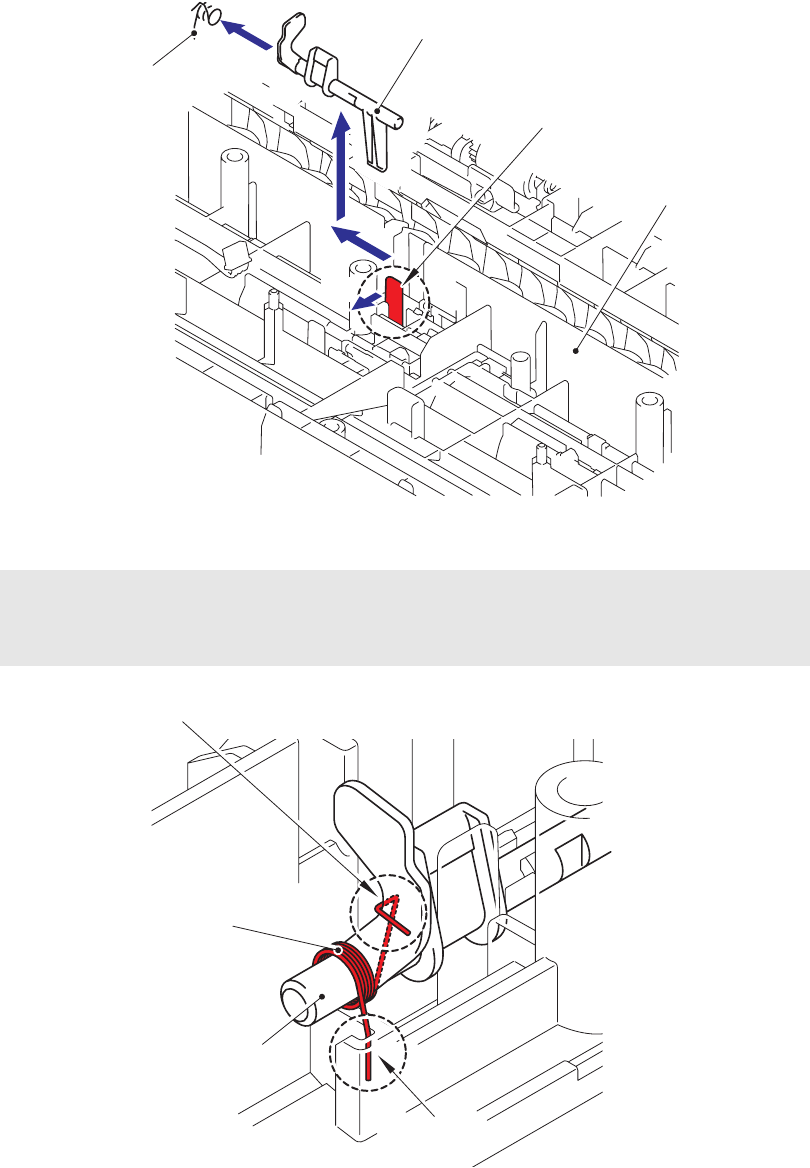

9.90 Regist Actuator Front/Regist Actuator Spring
(1) Slide the Regist actuator front to the direction of 1b while pressing the Hook to the
direction of 1a and pull up the Regist actuator front to remove. Then, remove the Regist
actuator spring from the Regist actuator front.
Fig. 5-200
Fig. 5-201
Assembling Note:
• When assembling the Regist actuator spring, ensure that its direction is correct referring
to the figure below.
Hook
Paper feed unit
Regist actuator front
1d
1c
1b
1a
Regist actuator spring
Hook
Regist actuator spring
Hook
Regist actuator front
