9.68 Relay Front PCB ASSY
(1) Remove the Relay front PCB ASSY.
(2) Disconnect the five connectors from the Relay front PCB ASSY.

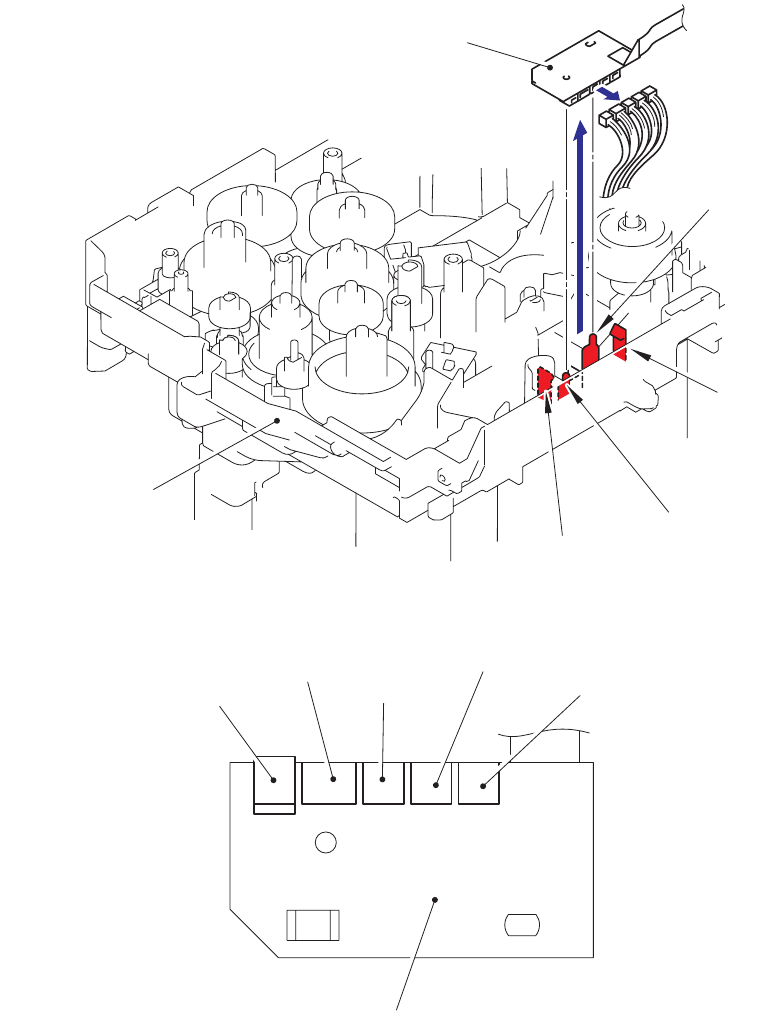

Fig. 5-143
Fig. 5-144
Pin
Pin
Hook
Hook
Frame L
Relay front PCB ASSY
T1 solenoid connector
Register solenoid connector
MP solenoid
connector
Relay front PCB ASSY
Inter lock SW connector
Toner sensor PCB connector
