4-19
Confidential

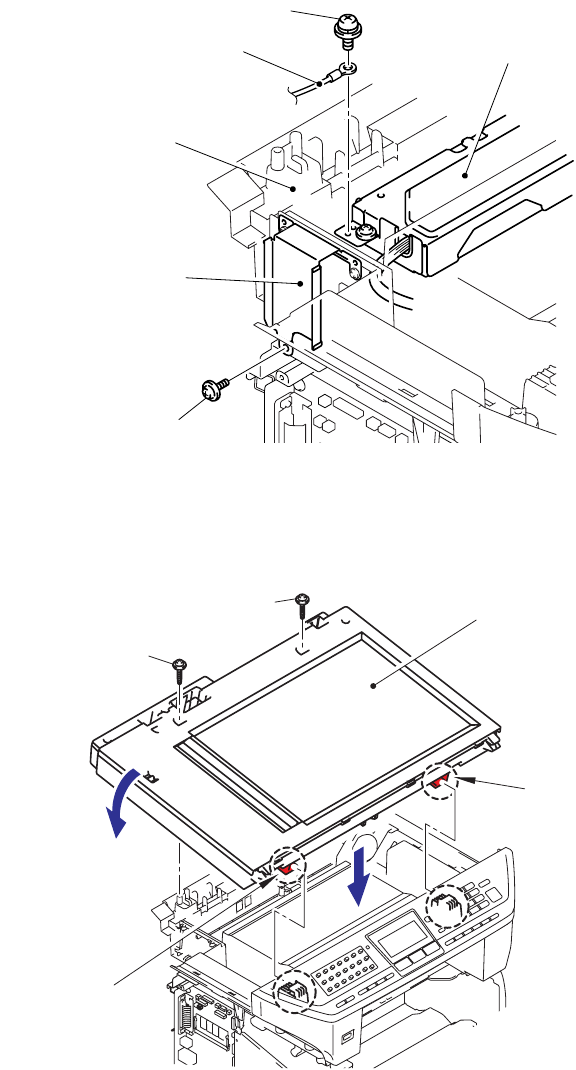

(10) Secure the Screw pan (S/P washer) M3.5x6 of the NCU FG harness ASSY.
(11) Secure the cup S M3x6 SR Taptite screw.
Fig. 4-28
(12) Catch the Hooks of the Scanner unit into the Joint cover and secure the Scanner unit
with the two cup B M4x20 Taptite screws.
Fig. 4-29
Screw, pan (S/P washer) M3.5X6
NCU FG harness ASSY
NCU unit
Joint cover ASSY
Driver PCB shield
Taptite cup S M3x6 SR
12b
12a
Scanner unit
Taptite cup B M4x20
Taptite cup B M4x20
Hook
Hook
