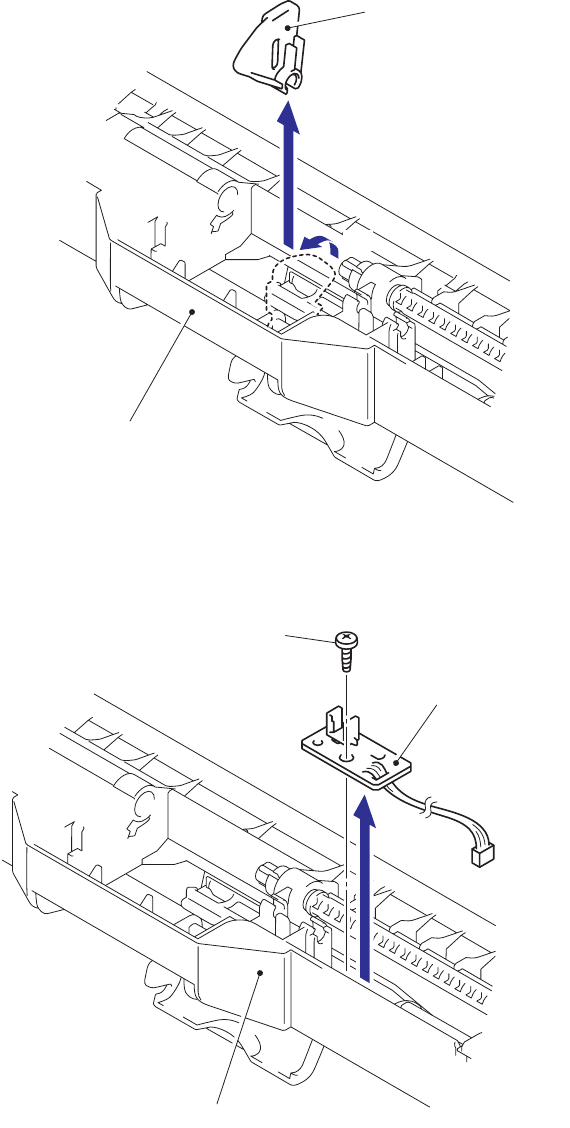

(9) Turn the PE actuator MP to the direction of 9a and pull it up to remove.
Fig. 5-192
(10) Remove the bind B M3x8 Taptite screw, and then remove the MP PE sensor ASSY.
Fig. 5-193
MP feed frame
PE actuator MP
9b
9a
MP PE sensor ASSY
Taptite, bind B M3x8
MP feed frame
