5-66
Confidential
9.29 ADF Film/Spring Plate ADF Front A ASSY/Separation Rubber/Rubber
Holder/Separation Spring
(1) Remove the ADF film.
(2) Remove the B M3x6 Taptite screw, and then remove the Spring plate ADF front A ASSY.
(3) Remove the Separation rubber.
(4) Remove the Rubber holder.
(5) Remove the Separation spring.

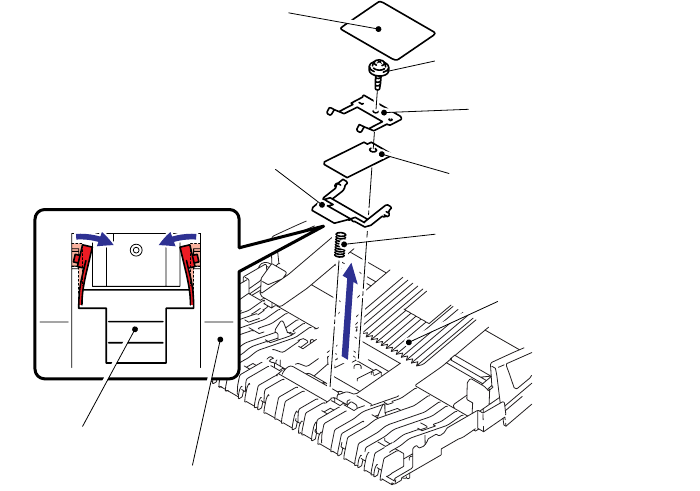

Fig. 5-69
ADF film
Rubber holder
Rubber holder
Taptite B M3x6
Spring plate ADF front A ASSY
Spring plate ADF front A ASSY
Separation rubber
Separation spring
Paper feed chute
