9.31 LF Roller 2 ASSY

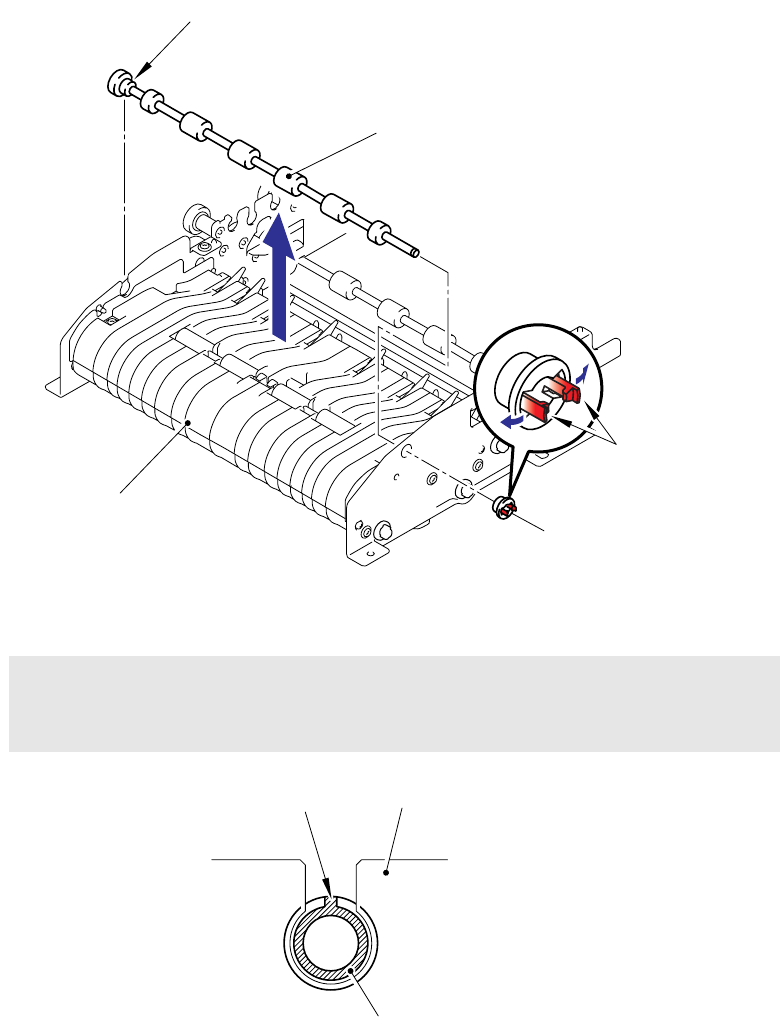

(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the LF roller 2 ASSY from
the ADF chute ASSY.
Fig. 5-71
Fig. 5-72
Assembling Note:
• When assembling the LF roller 2 ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
LF roller 2 ASSY
Hooks
Conductive bushing A
ADF chute ASSY
Boss ADF chute ASSY
Bushing
