Encoder control area
(VTR1)
Encoder and systems adjustments can be performed using these controls for the video signals to be output to an
external device.
<Note>
The VTR2 controls are positioned symmetrically to the VTR1 controls.

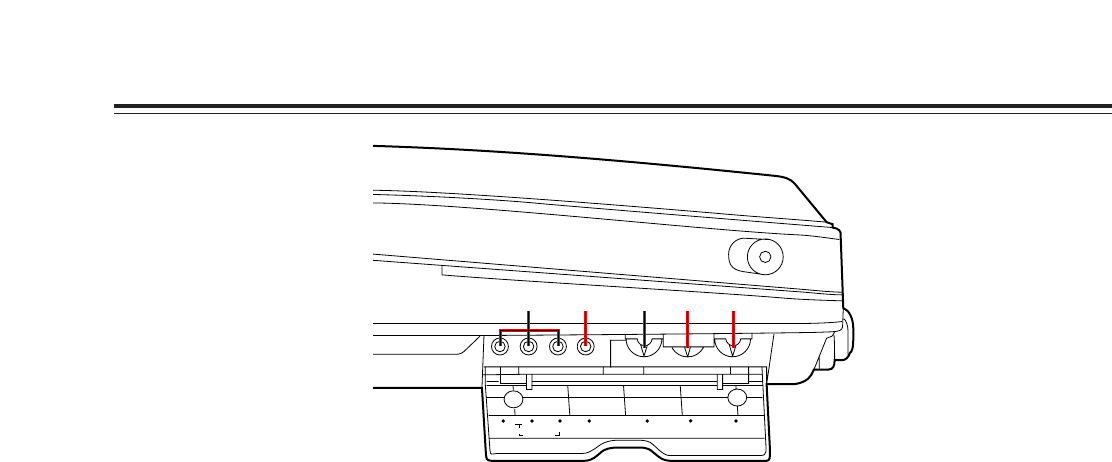

VTR1 controls (side panel)
1
VIDEO LEVEL control
Used to adjust the video level of the video output
signals.
2
SET UP control
Used to adjust the setup level of the video output
signals.
3
HUE control
Used to adjust the hue of the video output signals.
4
CHROMA LEVEL control
Used to adjust the chroma level of the video output
signals.
5
SYSTEM controls
Used to perform the system adjustments when a
reference video signal is to be input for
synchronization purposes.
H
: Used to adjust the system’s horizontal phase (in
subcarrier cycle increments).
SC FINE
:
Used to adjust the system’s subcarrier phase.
(It is capable of 90-degree P-P continuous
adjustments.)
SC COARSE
:
Used to adjust the system’s subcarrier phase.
(It has 4 positions, each of which corresponds to
90 degrees.)
<Note>
It may not be possible to adjust the phase in the 625i
mode even when the system adjustments at the VTR1
side are performed.
