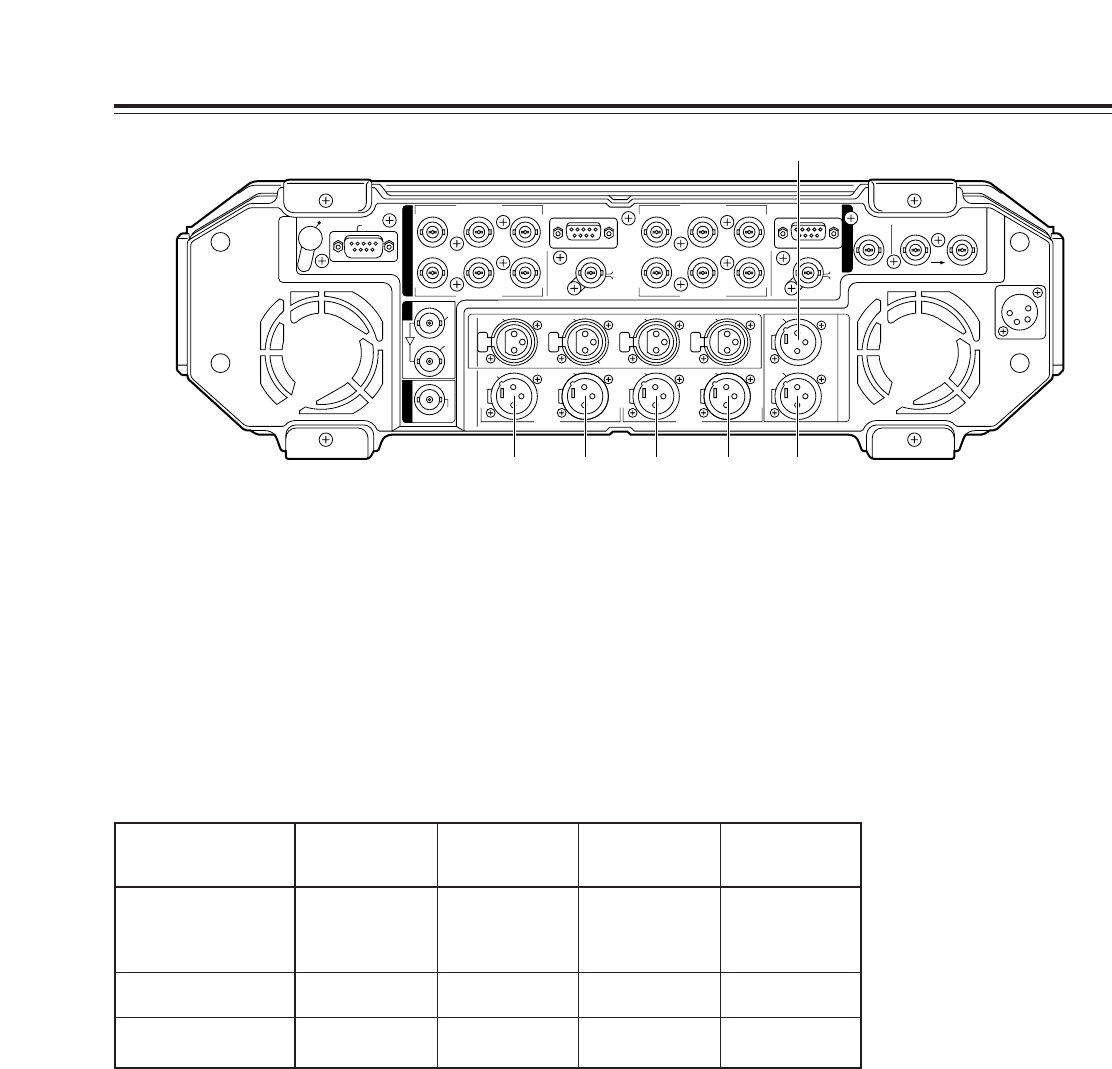

Connector area
ABCD
Audio output connectors (XLR)
The analog audio signals are output from these
connectors.
Their channel allocation can be changed as shown
below by setting the ANALOG AUDIO OUT switch.
<Notes>
¢¢
1: The output channels are selected by the setup menu item No.773 (PB AUDIO SEL) setting.
¢¢
2: Channel 3 and 4 signals are not output in the 25 Mbps mode.
ANALOG AUDIO OUT
switch setting
Output signals
from connector
A
Output signals
from connector
B
Output signals
from connector
C
Output signals
from connector
D
V1. V2 (2ch)
VTR1 channel 1
or
VTR2 channel 3
(
¢
1)
VTR2 channel 2
or
VTR2 channel 4
(
¢
1)
VTR1 channel 1
or
VTR1 channel 3
(
¢
1)
VTR1 channel 2
or
VTR1 channel 4
(
¢
1)
Parts and their functions
V1 (4ch) VTR1 channel 1 VTR1 channel 2
VTR1 channel 3
(
¢
2)
VTR1 channel 4
(
¢
2)
V2 (4ch) VTR2 channel 1 VTR2 channel 2
VTR2 channel 3
(
¢
2)
VTR2 channel 4
(
¢
2)
