Panasonic AJ-B95 Laptop User Manual



8

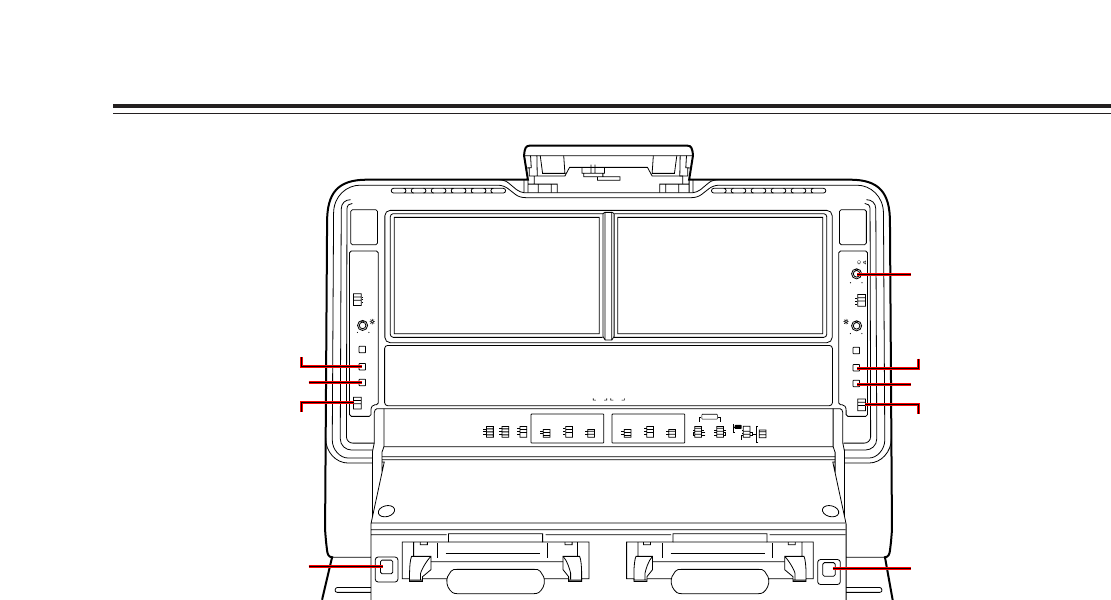

Panel control area
5
METER button
While this is held down, the audio level meter is set
to the fine mode. (See page 10)
6
RESET button
Used to reset the CTL counter.
7
COUNTER switch
CTL
: The CTL pulse count after resetting is shown
on the counter display area. It is reset by the
RESET button.
TC
: The time code which has been read out is
displayed. It is not reset even if the RESET
button is pressed.
UB
: The user’s bit of the time code which has been
read out is displayed.
8
EJECT button
Press this to eject the tape.
9
LEVEL control
Used to adjust the output level of the internal
speakers and headphones.
Parts and their functions
BACKLIGHT
BRIGHTNESS
COUNTER/
REMAIN
CH CONDITION CH CONDITION
EVENT
V1 V2
METER
CONTROL
EJECT
VTR 1
VTR 2
M-cassette
Caution Do not Insert S-cassette or with adaptor
<
EJECT
<
REMOTE
LOCAL
EXT VTR
PREROLLSYNCHRO
LEVEL ·
CTL
UB
FULL/
FINE
TC
RESET
LIGHT
DARK
OFF
7
5
3
CF
ON
OFF
REGEN
R-RUN
F-RUN
MODE
REC INHIBIT
TC
VTR 1
TAPE
EE
ON
OFF
REGEN
R-RUN
F-RUN
MODE
REC INHIBIT
TC
VTR 2
TAPE
EE
ON
OFF
ANALOG
OPERATION
MODE
EDIT
V2
VIDEO IN
SDI
ANALOG
SEPARATE
EXT
AUDIO
IN
V1-V2
V1
V2
OUT
2
CH
4
CH
2
CH
4
CH
BACKLIGHT
BRIGHTNESS
COUNTER/
REMAIN
METER
CTL
UB
FULL/
FINE
TC
RESET
LIGHT
DARK
OFF
M-cassette
Caution Do not Insert S-cassette or with adaptor
INT
9
6
8
5
6
7
8
5
7
