28
Connector area
EF
AUDIO MONITOR OUT connectors (XLR)
These are the audio monitor output connectors.
Their output signals can be changed by setting the
AUDIO MONITOR SELECT switches.
$
Concerning the audio output selected for the
audio monitor connectors, internal speakers
and headphones jack (front panel)
Which channels of which VTR, either VTR1 or
VTR2, are to be selected for the audio signals
which are to be output to the audio monitor
connectors, internal speakers and headphones jack
can be changed by setting the AUDIO MONITOR
SELECT switches on the keyboard to support many
audio monitoring options.
<Notes>
O
The same signals from the same channels of the
same VTR are output to audio monitor connector
L, the internal speaker on the left side and
headphones L.
Similarly, the same signals from the same
channels of the same VTR are output to audio
monitor connector R, the internal speaker on the
right side and headphones R.
Different signals cannot be set for the connector,
speaker and headphones.
O
When the headphones are plugged into the
headphones jack on the front panel, the sound
from the internal speakers is automatically cut
off.
O
The level control (by the side of the liquid crystal
monitor) on the front panel is used to adjust the
sound through the internal speakers and
headphones.
This control cannot be used to adjust the level of
audio signals which are output to the audio
monitor connectors.
Setting method
Setting is possible when “V1+V2” has been
selected as the setup menu item No.772 (AUTO
MONI) setting.
1. To output the VTR1 sound to the L connector
and the VTR2 sound to the R connector
O
Set the V1/V1•2/V2 switch to “V1•2”.
O
Use the L (V1) switch to select the VTR1 audio
channel whose sound is to be output to the L
connector.
O
Use the R (V2) switch to select the VTR2 audio
channel whose sound is to be output to the R
connector.
<Note>
Audio mixing is possible for channels 1 and 2 or for
channels 3 or 4. No other combination of channels
can be mixed.
2. To output the VTR1 sound to both the L and R
connectors
O
Set the V1/V1•2/V2 switch to “V1”.
O
Use the L (V1) switch to select the VTR1 audio
channel whose sound is to be output to the L
connector.
O
Use the R (V2) switch to select the VTR1 audio
channel whose sound is to be output to the R
connector.
<Note>
In this mode, stereo sound consisting of VTR1
channels 1 and 2 can be produced by selecting “1”
using the L (V1) switch and “2” using the R (V2)
switch.
3. To output the VTR2 sound to both the L and R
connectors
O
Set the V1/V1•2/V2 switch to “V2”.
O
Use the L (V1) switch to select the VTR2 audio
channel whose sound is to be output to the L
connector.
O
Use the R (V2) switch to select the VTR2 audio
channel whose sound is to be output to the R
connector.
<Note>
In this mode, stereo sound consisting of VTR2
channels 1 and 2 can be produced by selecting “1”
using the L (V1) switch and “2” using the R (V2)
switch.

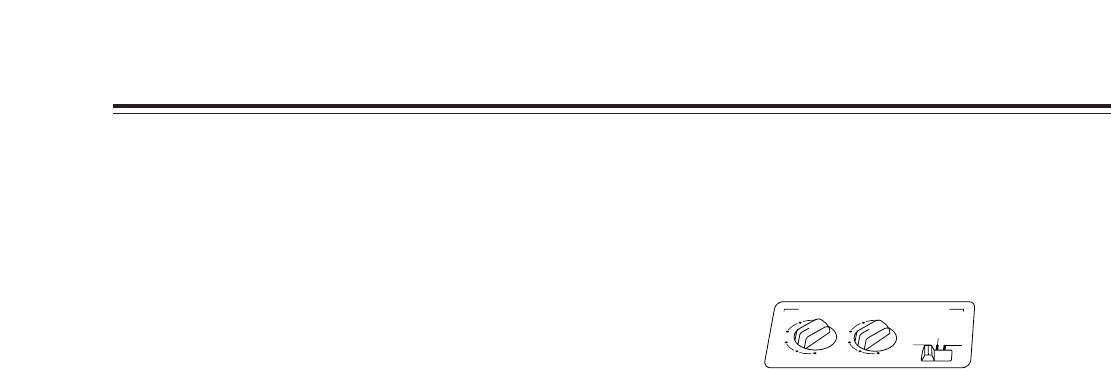

AUDIO MONITOR SELECT
LR
4
(V1·2)
V1 V2
1
3
MIX
MIX
2
4
1
3
MIX
MIX
2
Parts and their functions
