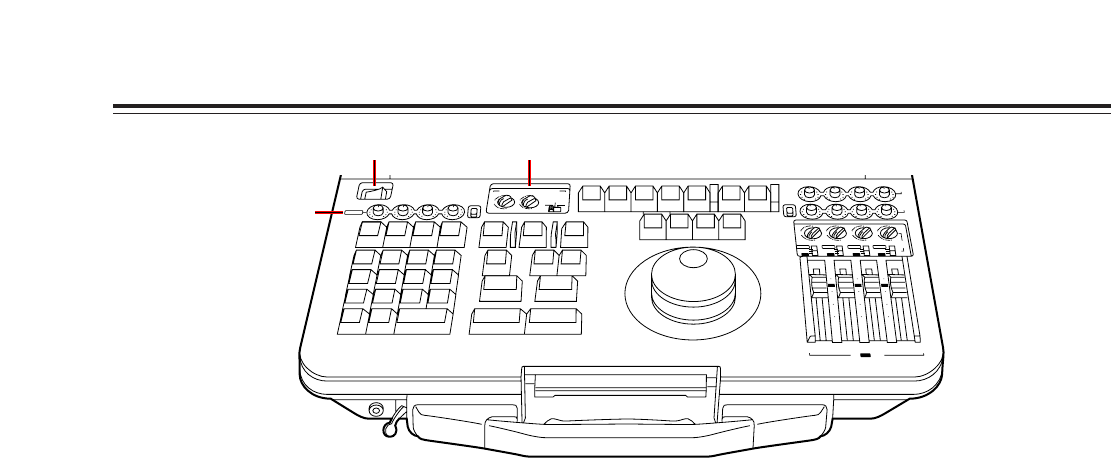

AUDIO control area
1
POWER switch
Used to control the unit’s power.
2
AUDIO MONITOR SELECT switches
Used to select the audio monitor output and
speaker output.
O
V1/V1•2/V2 switch
V1
: The VTR1 sound is output to the left and
right channels.
V1•2
: The VTR1 sound is output to the left
channel and the VTR2 sound to the right
channel.
V2
: The VTR2 sound is output to the left and
right channels.
O
L (V1) switch, R (V2) switch
The selected audio channel sound is output to
the left (or right) channel. When mixing between
1 and 2, the mixed signals of channel 1 and
channel 2 are output; when mixing between 3
and 4, the mixed signals of channel 3 and
channel 4 are output.
3
Analog audio recording level controls and
UNI/VAR switch
For each analog audio input connector (XLR) on
the rear panel there is one level control.
When the UNI/VAR switch is set to VAR, the audio
recording level can be adjusted separately for each
input channel.
When it is set to UNI, the levels are fixed to the
initial values regardless of the positions of the level
controls.
<Note>
When V2 IN is selected as the setup menu item
No.172 (VTR1 IN SEL) setting and the same sound
is to be recorded on VTR1 and VTR2, the recording
level for both VTR1 and VTR2 is adjusted using
these controls. (The recording level cannot be
adjusted separately for VTR1 and VTR2.)
