6287 ULTRA Users ManualPage 2-4

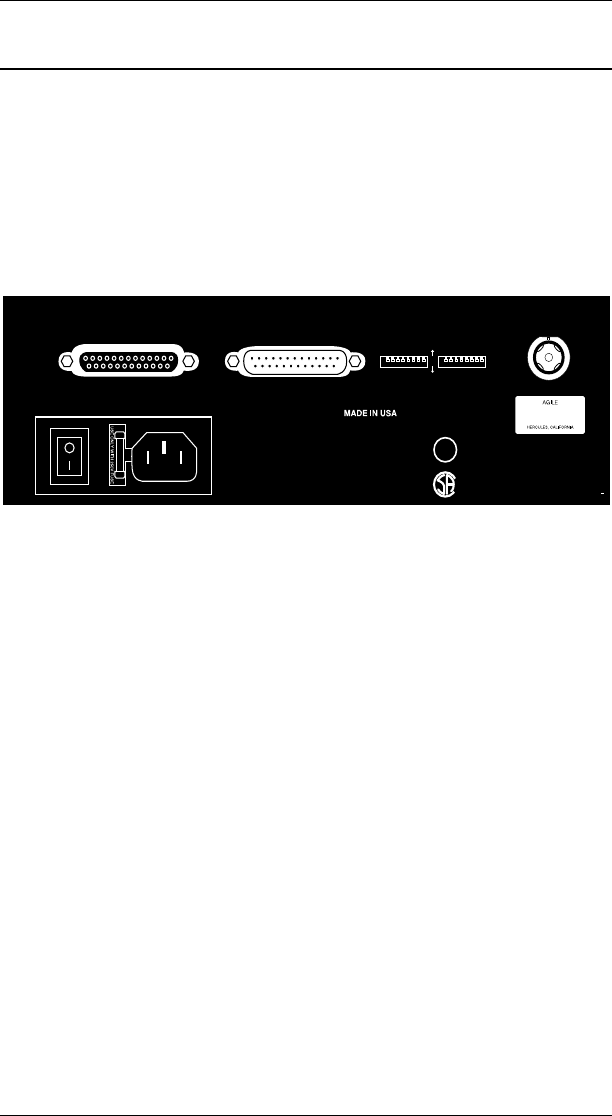

6287 ULTRA Rear Panel
The rear panel of the ULTRA provides an on/off switch, a power cord
outlet, a coax port for connection to the CPU controller (RG62 A/U), a
printer port (parallel or serial), an alternate host port (parallel or serial) and
two banks of dip switches.
OUTPUT
SERIAL AND PARALLEL
ALTERNATE HOST INPUT
SERIAL AND PARALLEL
117 VAC
.5A
50/60 Hz
35W
FUSE
250V-1.0A
SLO BLO
CONTROLLER
COAX
RG 62 A/U
MODEL 6287 ULTRA
S/N 00000
This equipment complies with the requirements
in Part 15 of FCC Rules for a Class A computing
device. Operation of this equipment in a
residential area may cause unacceptable
interference to radio and TV reception
requiring the operator to take whatever steps
are necessary to correct the interference.
LR 69521 E.D.P. EQUIPMENT
47T8
Y
CAUTION-FOR CONTINUED PROTECTION
AGAINST FIRE, REPLACE ONLY WITH
SAME TYPE AND RATING OF FUSE
LISTED
U
L
®
®
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
OFF
ON
AB
Alternate
Host Port
Printer
Port
Dip Switch
Banks
CPU
Port
On/Off
Switch
Power Cord
Outlet
