2. Identifying Your Printer’s Parts
２. Identifying Your Printer’s Parts

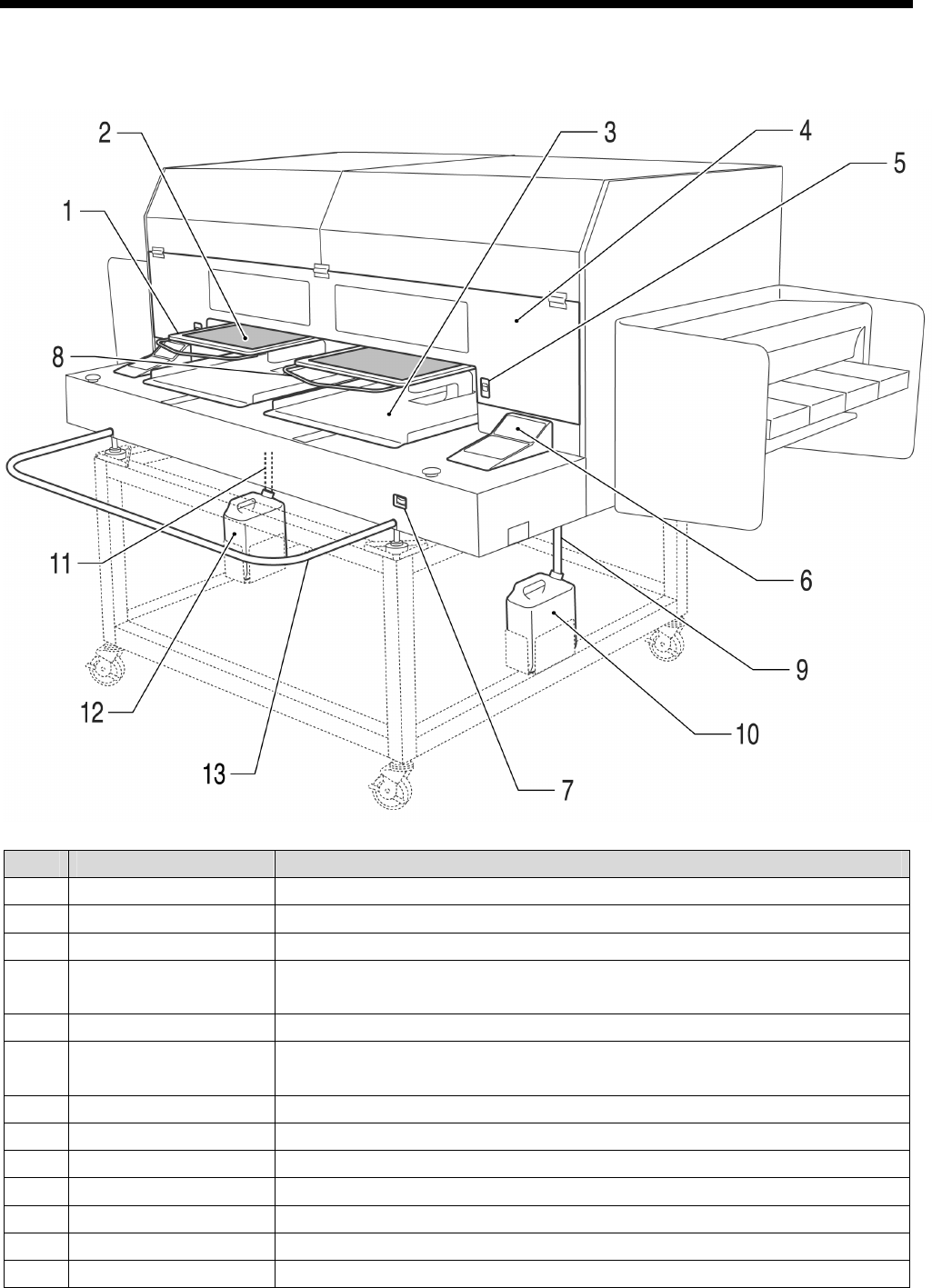

２-１. Front
4322M
No. Name Description
1 Platen Holds the T-shirt to be printed.
2 Platen Sheet Prevents a T-shirt from slipping so that an image is printed on your desired position.
3 T-shirt Tray Keeps parts of T-shirt hanging from the Platen (e.g. sleeves) on this T-shirt Tray.
4 Front Cover Open this to work on the inside of your printer. Open it after you turn OFF the printer.
(If you open the Front Cover while operating, the power automatically turns off.)
5 Cover Locks Push this up to open the Front Cover.
6 Control Panel Use this to operate your printer.
See “2-6. Control Panel” for the details.
7 Power Switch Turns on/off your printer.
8 Shoulder Bar Adjusts the T-shirt position.
9 Waste Ink Tube (White) Drains the waste ink (White)
10 Waste Ink Tank (White) Holds the waste ink (White). Be aware of the room.
11 Waste Ink Tube (Color) Drains the waste ink (Color)
12 Waste Ink Tank (Color) Holds the waste ink (Color). Be aware of the room.
13 Guard Bar Keeps the loading space of the Platens.
GT-782
6
