4. Printing Directly from Applications

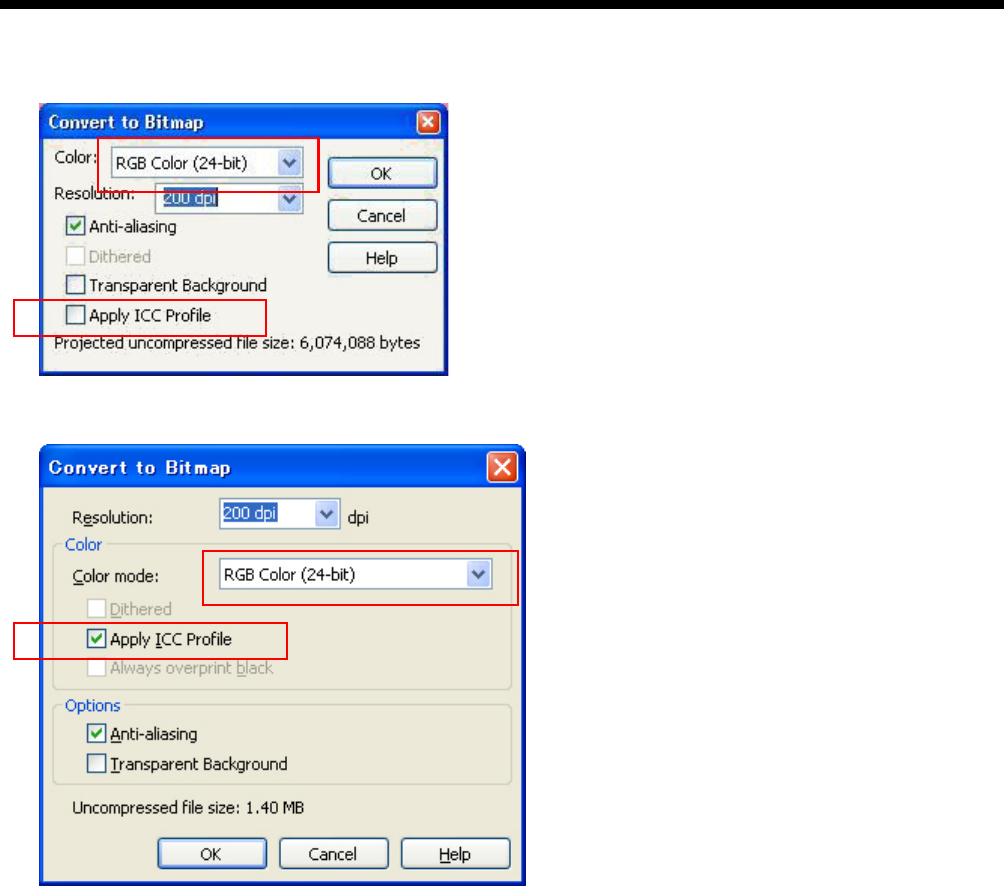

Convert to Bitmap:
(1) Select [ Bitmaps ] > [ Convert to Bitmap... ] menu.
(2) CorelDRAW 10/11/12: Make sure that "Color" is RGB and "Apply ICC Profile" is OFF. 200 dpi is enough for solid clipart.
CorelDRAW X3/X4: Make sure that "Color" is RGB and "Apply ICC Profile" is ON.
CorelDRAW 10/11/12
CorelDRAW X3/X4
<Important!>
The platen size may become 14x16 inches when pressing Set From Printer, even after setting the size of 10x12 inches at
"Document Properties" dialog box of Printer Driver. To make print data in platen size of 10x12 inches, set Width : 254 mm
(10 inch), Height : 304.8 mm (12 inch).
If the print data file is not saved from the printer driver menu but application menu, the extension of the print data is
automatically ".prn" although you added .arp. Before you use GT File Viewer to print, change the extension to ".arp"
manually.
There are some cases reported in CorelDRAW 11/12 that outline Colors of curved texts (often by Envelop Effects) are not
fully printed. In those cases, convert the text object into Bitmap before you print or check "Rasterize entire page (DPI)"
checkbox in [ Misc ] tag of [ Print ] menu. The default DPI is 400, but 200-300 dpi will be enough to save time.
