Cisco ASR 1001-X Router Hardware Installation Guide
OL-32376-02
Chapter 7 Removing and Replacing FRUs from the Cisco ASR 1001-X Router
Removing and Replacing the Cisco ASR 1001-X Router Power Supplies
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Removing AC Power Supplies from the Cisco ASR 1001-X Router
This section describes how to remove an AC power supply from the Cisco ASR 1001-X Router. The
Cisco ASR 1001-X Router has two power supply slots, power supply slot 0 (PS0) next to the Standby
switch and power supply slot 1 (PS1) to the right, as shown in Figure 7-3.
Note The Cisco ASR 1001-X Router has redundant power supplies that can be hot-swapped.
Follow these steps to remove an AC power supply from the Cisco ASR 1001-X Router:
Step 1 At the rear of the router, ensure that the power switch is in the Standby position.
Note It is not required to place the power switch in the Standby position if you want to hot-swap a
single power supply.
Step 2 Unplug the power cable from the power supply as shown in Figure 7-1.
Step 3 Press the retaining latch towards the pull handle, grasp the handle with one hand, and pull the power
supply out of the slot while supporting the weight of the power supply with the other hand, as shown in
Figure 7-2.

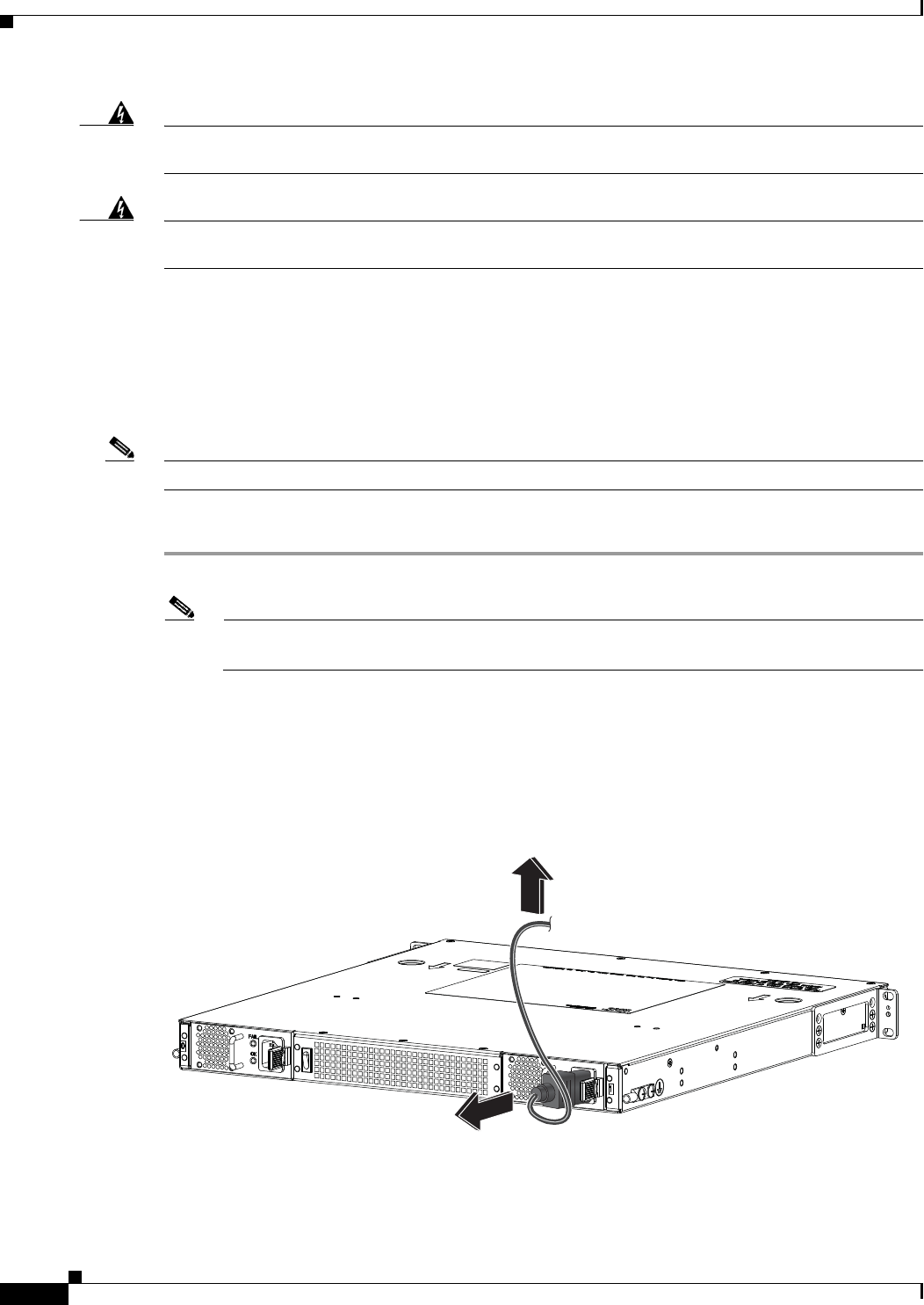

Figure 7-1 Removing the AC Power Supply Cable in Slot PS1
371218
