Cisco ASR 1001-X Router Hardware Installation Guide
OL-32376-02
Chapter 7 Removing and Replacing FRUs from the Cisco ASR 1001-X Router
Removing and Replacing the Cisco ASR 1001-X Router Power Supplies
Step 5 If you have changed the Standby switch to the standby position in step 1, turn the Standby switch to the
On position.
The power supply LEDs are illuminated (green).
This completes the procedure for connecting AC input power.
Removing DC Input Power from the Cisco ASR 1001-X Router
Note The Cisco ASR 1001-X Router has redundant power supplies that can be hot-swapped.
This section describes how to remove a DC power supply from the Cisco ASR 1001-X Router. Follow
these steps:
Step 1 Turn off the circuit breaker from the power source.
Step 2 At the rear of the router, ensure that the power switch is in the Standby position.
Note It is not required to place the power switch in the Standby position if you want to hot-swap a
single power supply.
Step 3 Unscrew the two terminal block wire connectors (negative and positive) on the unit. See Figure 7-7.
Step 4 Press the retaining latch towards the pull handle, grasp the handle with one hand, and pull the power
supply out of the slot while supporting the weight of the power supply with the other hand. See
Figure 7-5.

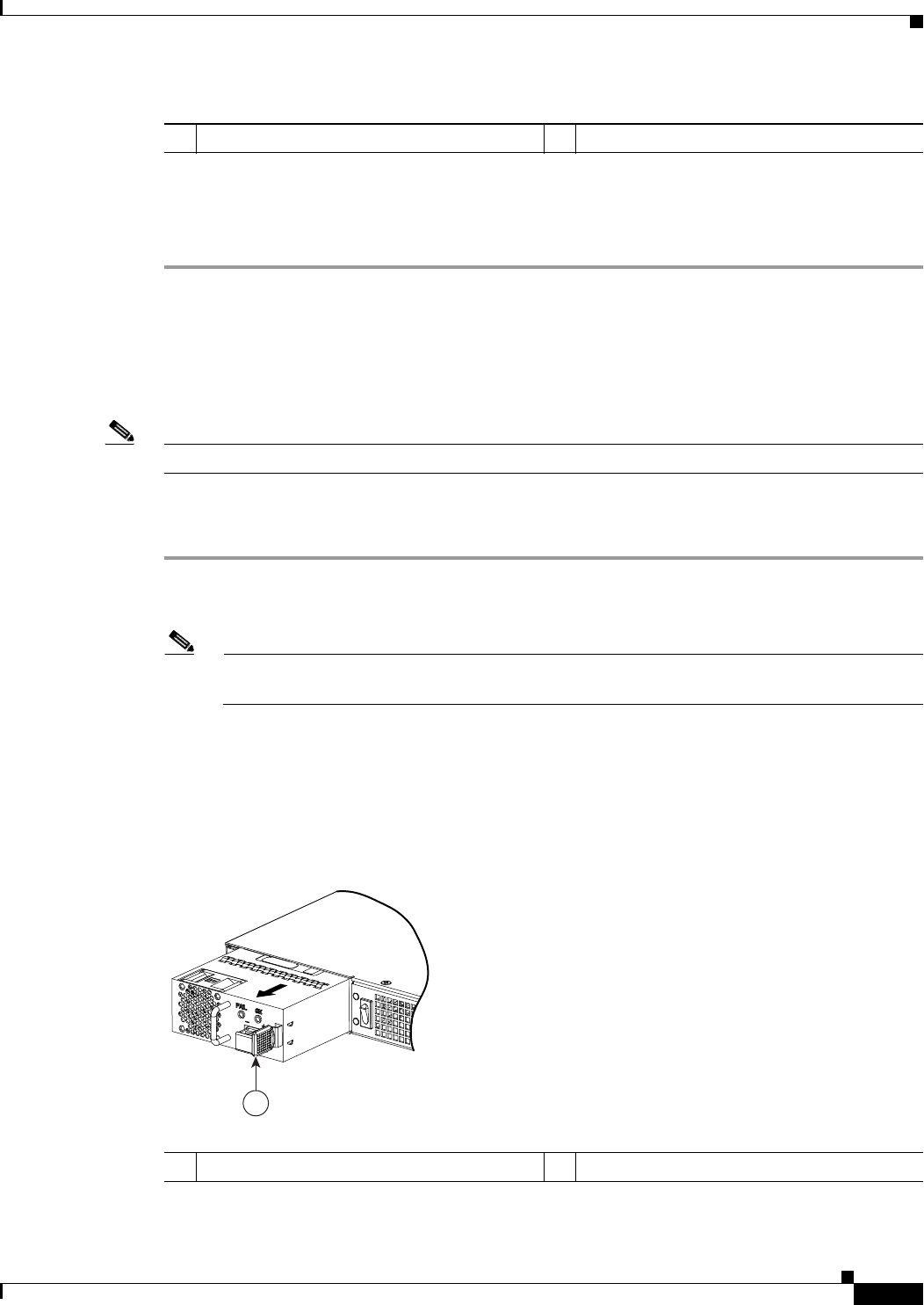

Figure 7-5 Removing DC Power Supply
1 AC power supply 2 Position of power supply cable
372845
1
1 Retaining latch
