7-20
Cisco ASR 1001-X Router Hardware Installation Guide
OL-32376-02
Chapter 7 Removing and Replacing FRUs from the Cisco ASR 1001-X Router
Removing and Replacing an SSD from the NIM-SSD Module

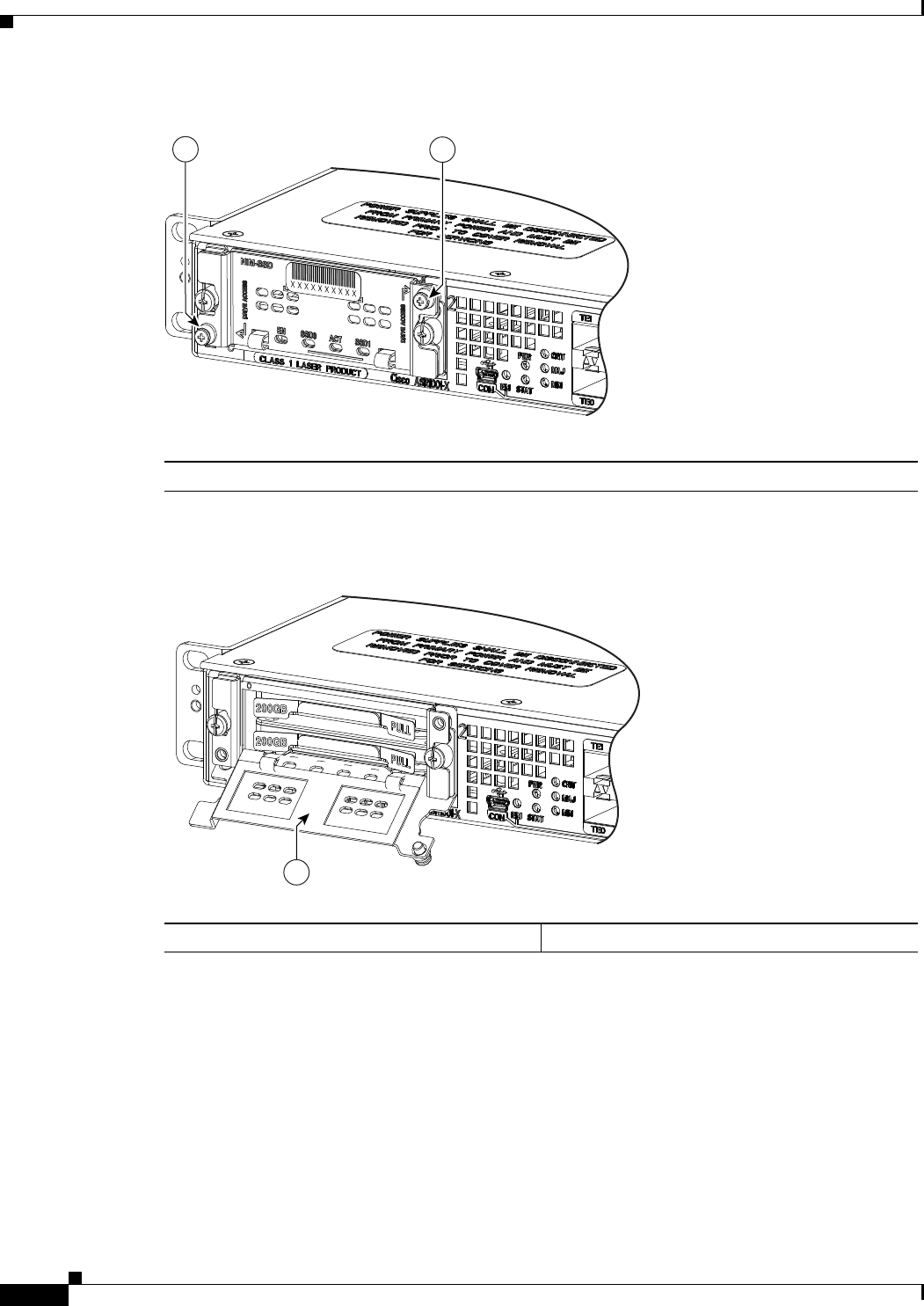

Figure 7-15 Captive Installation Screws Location
Step 4 Pull the NIM-SSD card slot cover down, exposing the SSD slot, as shown in Figure 7-16.
Figure 7-16 Opening the SSD Slot Cover
Step 5
Pull the NIM-SSD out of the connector on the motherboard using both hands, as shown in Figure 7-17.
While pulling, keep the NIM-SSD parallel with the motherboard to prevent damage to the slot and the
standoff.
1
1
372932
1. Captive screws on the SSD slot cover attaching the SSD drive to the NIM carrier card
1
372933
1. Carrier card slot cover
