Appendix C • Installing the DW4020 Manually
104
1031484-0001 Revision 2
Antenna Pointing - Receiver This section describes how to verify adequate receive signal
reception, that is, with a signal quality factor (SQF) of over 30.
1. Enter i at the Main Menu prompt. The Installation Menu
appears (see Figure 81). Enter either your installer ID number
or <CR>, which defaults to a valid installer ID, to access the
submenus. If automatic cross-polarization (ACP) is not
available,
"Transmitter, Automatic (not
available"
will appear in the menu.
CAUTION
• The two-way satellite dish assembly emits radio
frequency energy when in the transmit mode.
• Unplug indoor power connection before performing
maintenance or adding upgrades to any satellite dish
components.

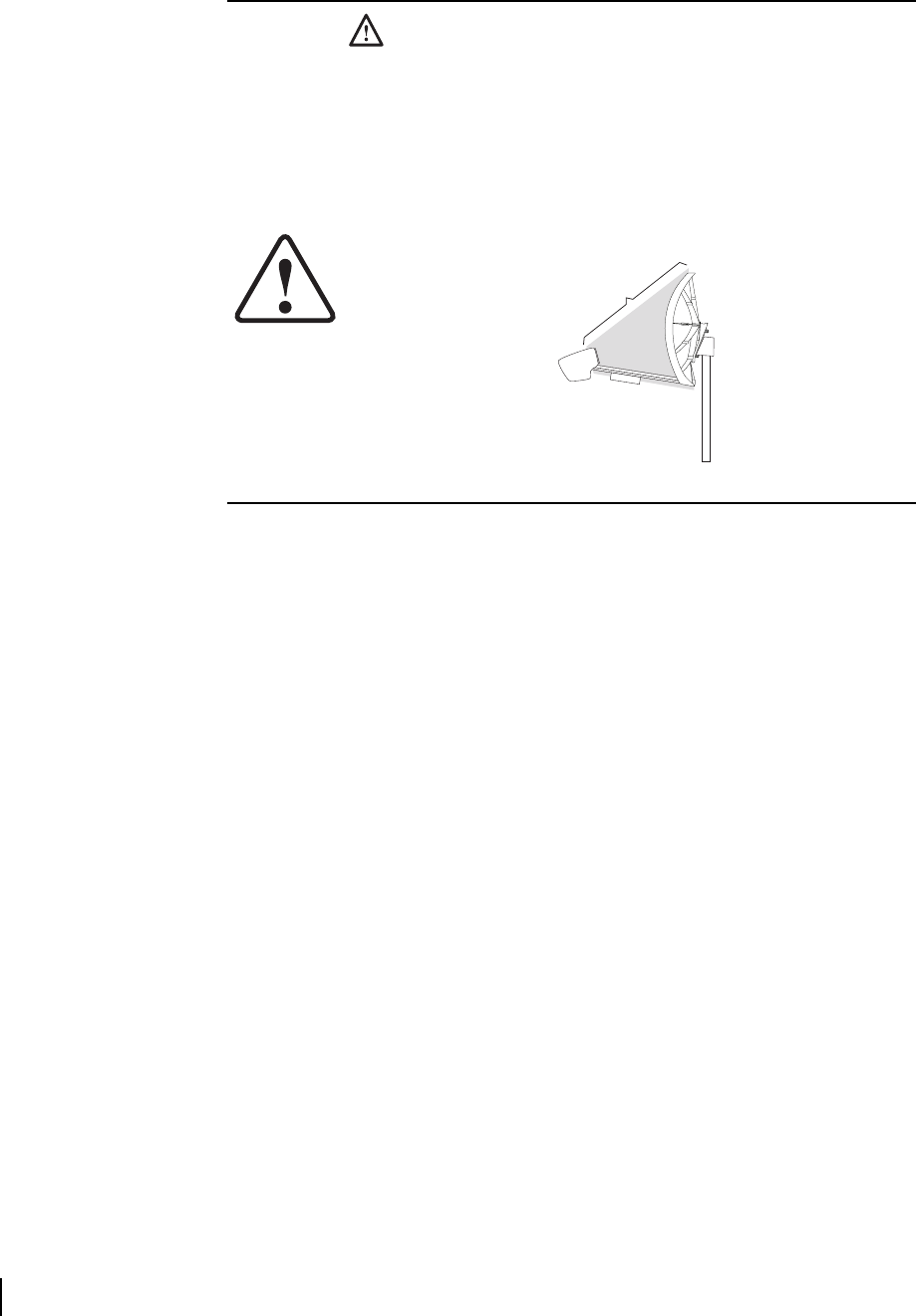

• To avoid risk of injury, do not place head or other body
parts between feed horn and reflector when system is
operational.
Prohibited area
(when operational)
Installation Menu:
(a) Antenna Pointing - Receiver
(b) Antenna Pointing - Transmitter, Automatic
(c) Antenna Pointing - Transmitter, Manual
(d) Verify Ranging
(z) Return to Main Menu
Figure 81: Installation Menu
