TRACER 6000 Series Integrated System Manual Section 5 User Interface Guide
612806420L1-1F Copyright © 2005 ADTRAN, Inc. 69
> DATAPATH PROVISIONING

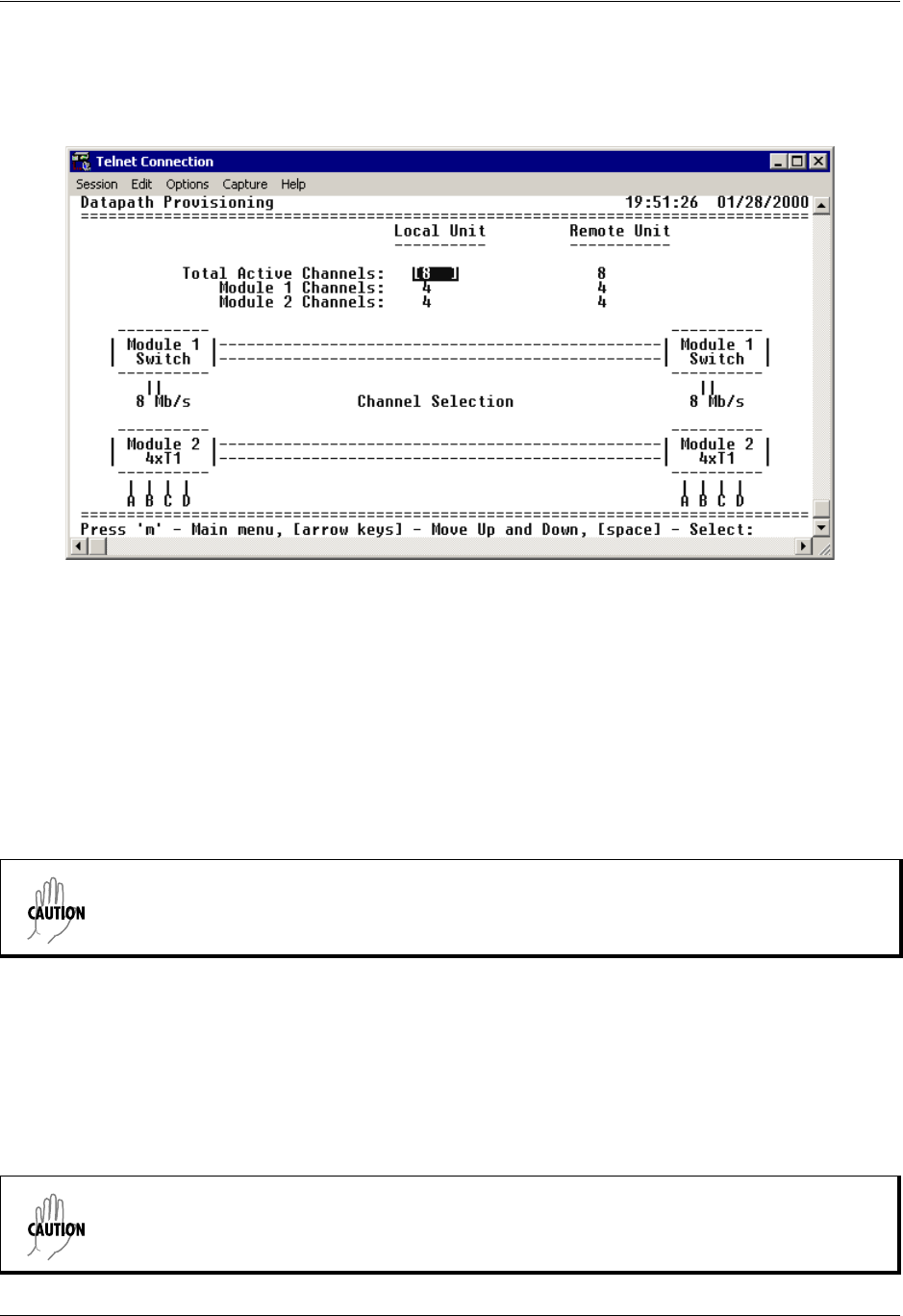

Figure 12 shows the Datapath Provisioning menu page, which displays the active network interfaces for the
installed modules (from both the local and remote TRACER 64x0 units).
Figure 12. Datapath Provisioning
> DATAPATH PROVISIONING > TOTAL ACTIVE CHANNELS
Defines the total number of channels active on the installed modules. Specify 2, 4, or 8 total active channels.
After defining the total number of active channels, specify the actual active channels using the
CHANNEL
S
ELECTION menu.
> DATAPATH PROVISIONING > MODULE 1/MODULE 2 CHANNELS
(Read Only) Displays the total number of active channels on the installed module.
> DATAPATH PROVISIONING > CHANNEL SELECTION
Defines the active channels (A, B, C, D) on each installed T1 module or the bandwidth dedicated to the Quad
Ethernet Switch module (in 2 Mbps steps). To activate a channel, press <Enter> and use the spacebar or
arrow keys to cycle through the available channel combinations until the desired combination displays. Press
<Enter> again to make the channel combination change. If the specified channel selection is not valid, the
TRACER 64x0 automatically corrects the configuration and populates the field with a valid selection.
The number of active channels and the channel configuration on both the local and remote
systems must match for the RF link to function properly. A discrepancy between the systems
can result in unpredictable operation.
The number of active channels and the channel configuration on both the local and remote
systems must match for the RF link to function properly. A discrepancy between the systems
can result in unpredictable operation.
