Section 5 User Interface Guide TRACER 6000 Series Integrated System Manual
82 Copyright © 2005 ADTRAN, Inc. 612806420L1-1F
> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP GET COMMUNITY
Defines the community name for Get access (to poll the TRACER 64x0 for status information). This value
must match the Get name defined on the network management stations (NMS). Get access is read only
access. The default name is public.
> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP PUT COMMUNITY
Defines the community name for Set access (to change TRACER 64x0 configuration parameters through
SNMP). This value must match the Get or Set name defined on the NMS. The default name is private.
> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP TRAP COMMUNITY
Defines the community name for trap destinations. This name must match the community name defined on
the NMS. The default name is SNMP_trap.
> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP TRAP HOST #0 - #4
Identifies the IP address in dotted decimal notation of the NMS for the TRACER 64x0 to send SNMP traps
to. Up to five trap destinations can be entered.
> PING UTILITY

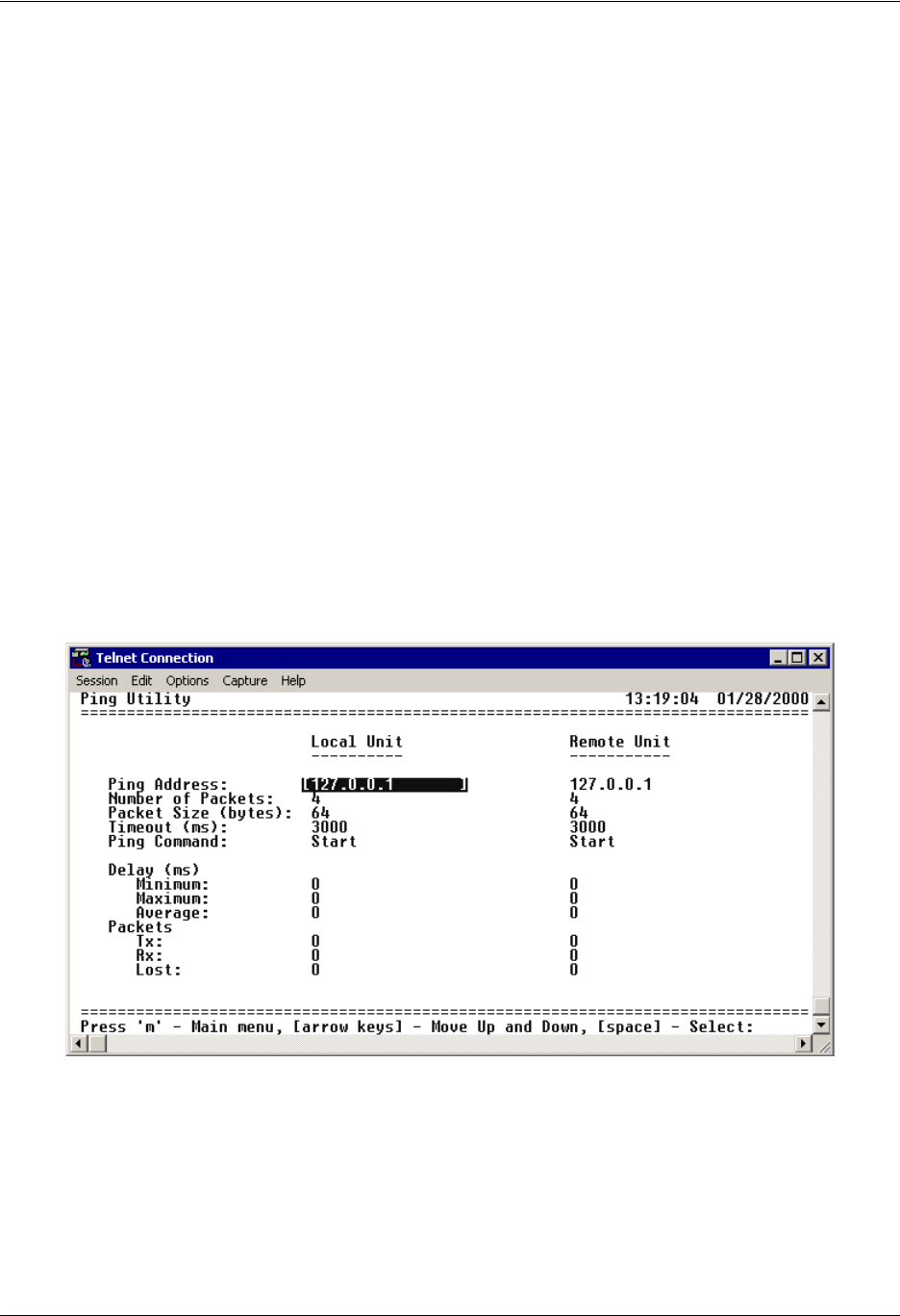

Figure 32 shows the Ping Utility menu page, which contains the parameters for performing a ping test out
of the 10/100BaseT/TX
MGMT Ethernet interface.
Figure 32. Ping Utility
> PING UTILITY > PING ADDRESS
Specifies the IP address to ping (in dotted decimal notation).
