TRACER 6000 Series Integrated System Manual Section 5 User Interface Guide
612806420L1-1F Copyright © 2005 ADTRAN, Inc. 73
> E1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINE [REMOTE]
Activates a loopback at the remote TRACER 64x0 E1 framer towards the connected E1 equipment at the
remote end of the link (see Figure 18). Use the remote
LINE loopback to test data path integrity from the
remote TRACER 64x0 unit to the E1 equipment connected at the remote end of the link.

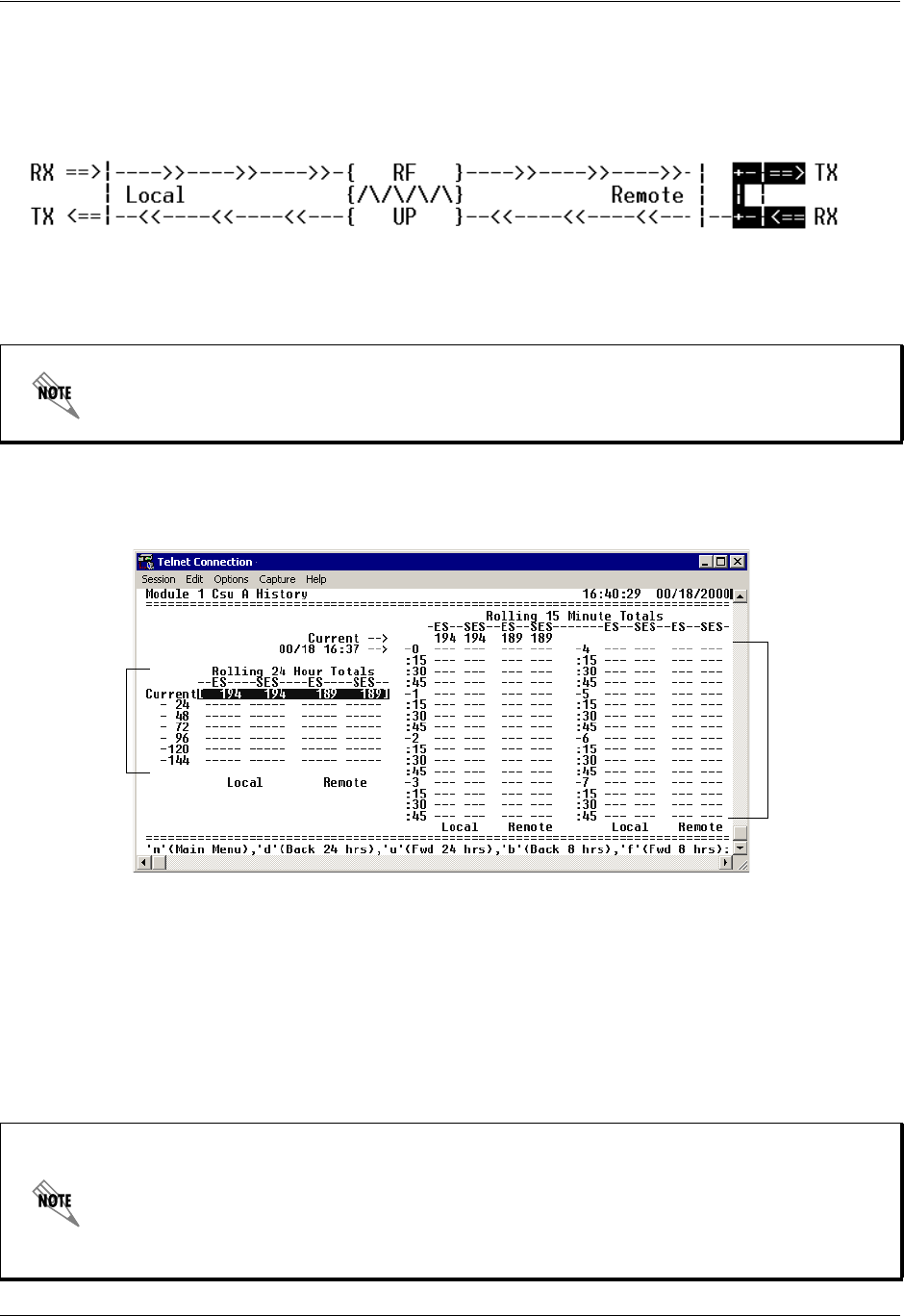

Figure 18. E1 Remote Line Loopback
> E1X PERFORMANCE HISTORY
Figure 19 shows the E1x Performance History menu page, which displays detailed error statistics for the
E1 link (from both the local and remote TRACER 64x0 units) in 15-minute and 24-hour increments.
Figure 19. E1x Link Performance History
E1 performance data is presented as Errored Seconds (ES) and Severely Errored Seconds (SES) on the E1
interface. The following events qualify as an ES: LOS, OOF, LCV, or CRC error. An SES is caused by a
loss of signal or an out-of-frame event.
The error count for the most recent 24 hours are recorded in 15-minute increments and displayed on the
right side of the page. The left side of the page displays the 24-hour totals for the most recent 7 days.
The following menus for the E1X PERFORMANCE HISTORY apply to all four available E1
interfaces (
A through D).
Press <u> to view the next 24-hour segment (for the 7 day totals) and <d> to view the
previous 24-hour segment.
Press <f> to view the next 8-hour segment of 15-minute totals and <b> to view the
previous 8-hour segment.
7
Days
24
Hours
(8 Hours
displayed
at a time)
