D-Link DHS-3224V Switch User’s Guide
16
Cable Attachments to DSL Splitter
There are two styles of connectors used for RJ-21 cable connections. The recommended style for all RJ-21
connections on the Switch and Splitter is the 90-degree connector picture in Figure 4-5 below.

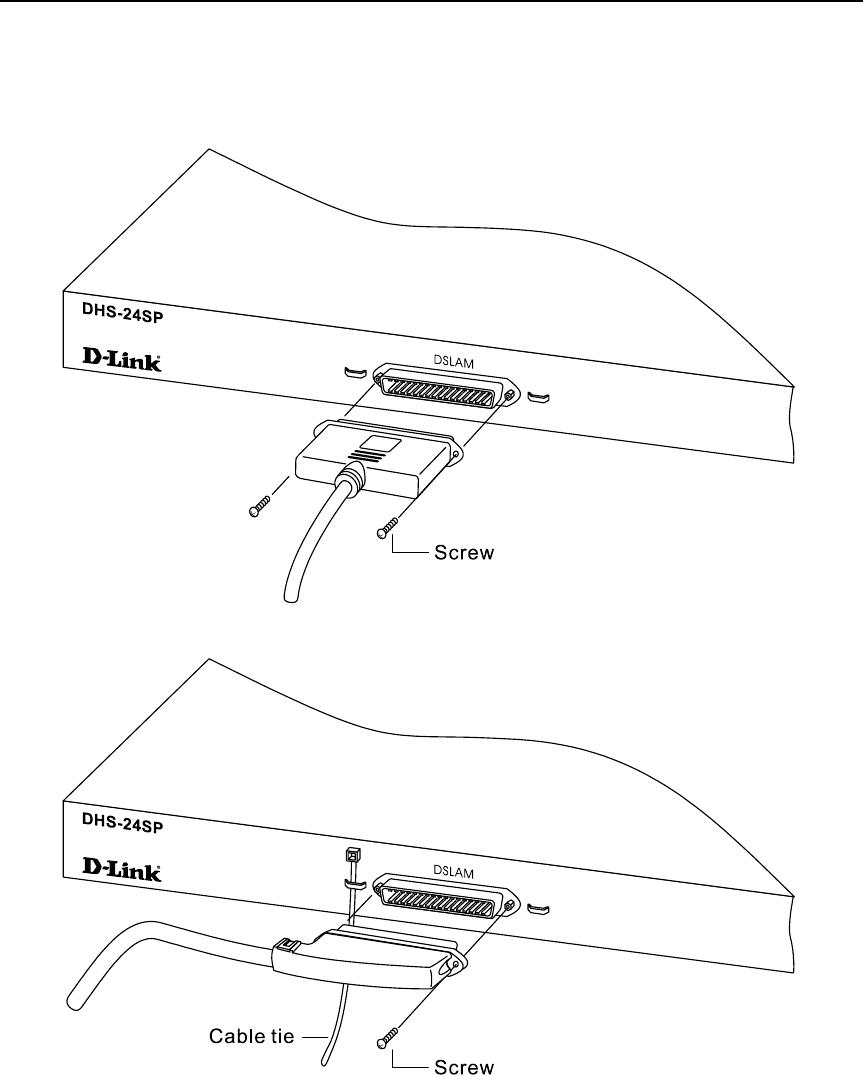

Figure 4-5. 90-degree Connector secured with two screws
Figure 4-6. 120-degree Connector secured with one screw and a cable tie
