Chapter 4 Troubleshooting
4-2. Troubleshooting
CL-S700/CL-S703/CL-S700R 4-16

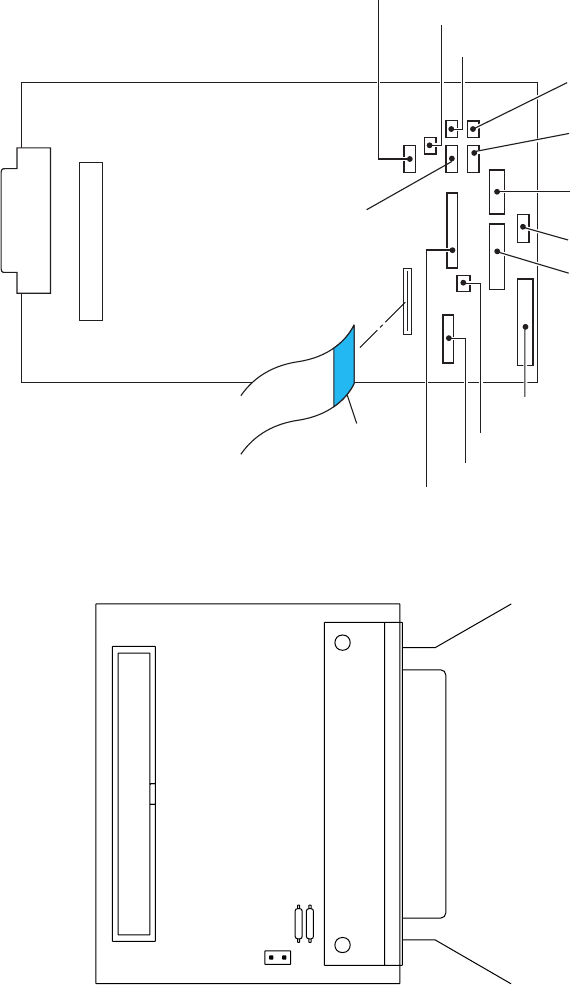

4-2-7. Connector Location
[SA, Main PCB]
[Unit, Centro PCB]
CN101
J16
J12
J6
J21
J7
J22
J11
J5
J4
J15
J3
J14
J9
J8
1
10
Unit, Head
SA, Main PCB
SA, Head Up SW (Head Up Sensor)
Adjustable Sensor (Transparent sensor)
Front Fixed Sensor
(Transparent sensor)
Adjustable Sensor
(Reflective sensor)
Front Fixed Sensor
(Reflective sensor)
SA, Fan
Unit, Motor
Unit, Motor (Thermistor)
Unit, Power Supply
Ope-Pane FFC Cable
(Blue Tape)
Ribbon Encoder
(Ribbon Running Sensor/Ribbon End Sensor)
SA, Connect PCB (J801) (CL-S700/CL-S703)
SA, Rewinder PCB (J501) (CL-S700R)
SA, Connect PCB (J803) (CL-S700/CL-S703)
SA, Rewinder PCB (J502) (CL-S700R)
