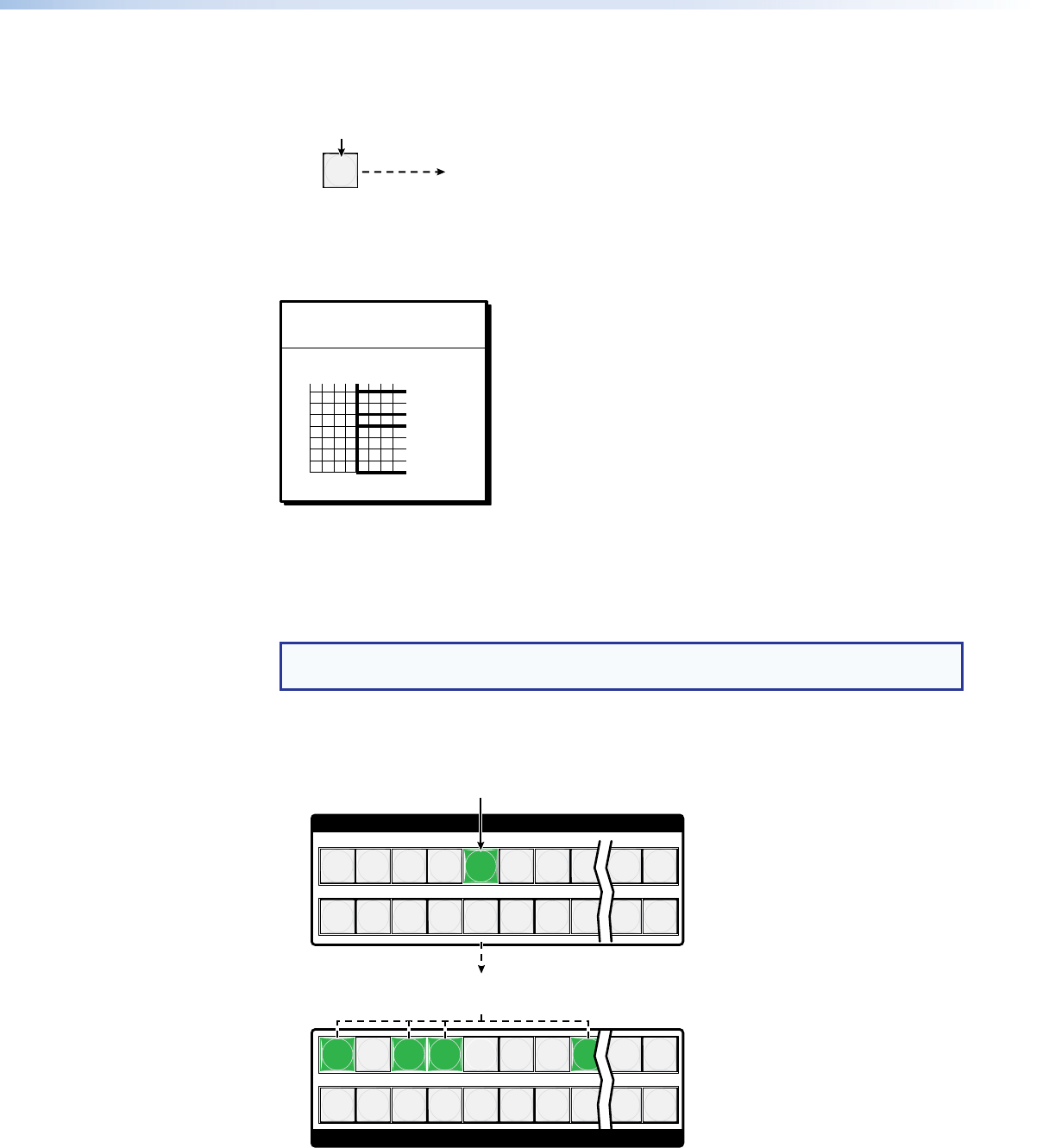

4. Confirm the change: Press and release the Enter button.
ENTER
All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to
confirm the configuration
change.
The Enter button returns to
unlit or background
illumination.
The current configuration (see figure 20) is now input 5 tied to output 1, output 3, output 4,
and output 8.
Input 5 tied
to outputs 1, 3, 4, and 8
Input
Output
1
3
4
8
5
Figure 20. Final Configuration, Example 2
Example 3: Remove a tie from a set of ties
In the following example, an existing tie is removed from the current configuration. The
example shows the front panel indications that result from your actions.
NOTE: This example assumes that you have performed example 1 on page 27 and
example 2 on the previous page.
1. Clear all selections: Press and release the Esc button.
2. Select an input: Press and release the input 5 button.
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
INPUTS
OUTPUTS
Press and release the Input 5 button.
The button lights.
The Output 1, Outout 3, Output 4, and Output 8 buttons light
to indicate the ties created in example 1 and example 2.
FOX Matrix 3200 and 7200 Switchers • Operation 29
