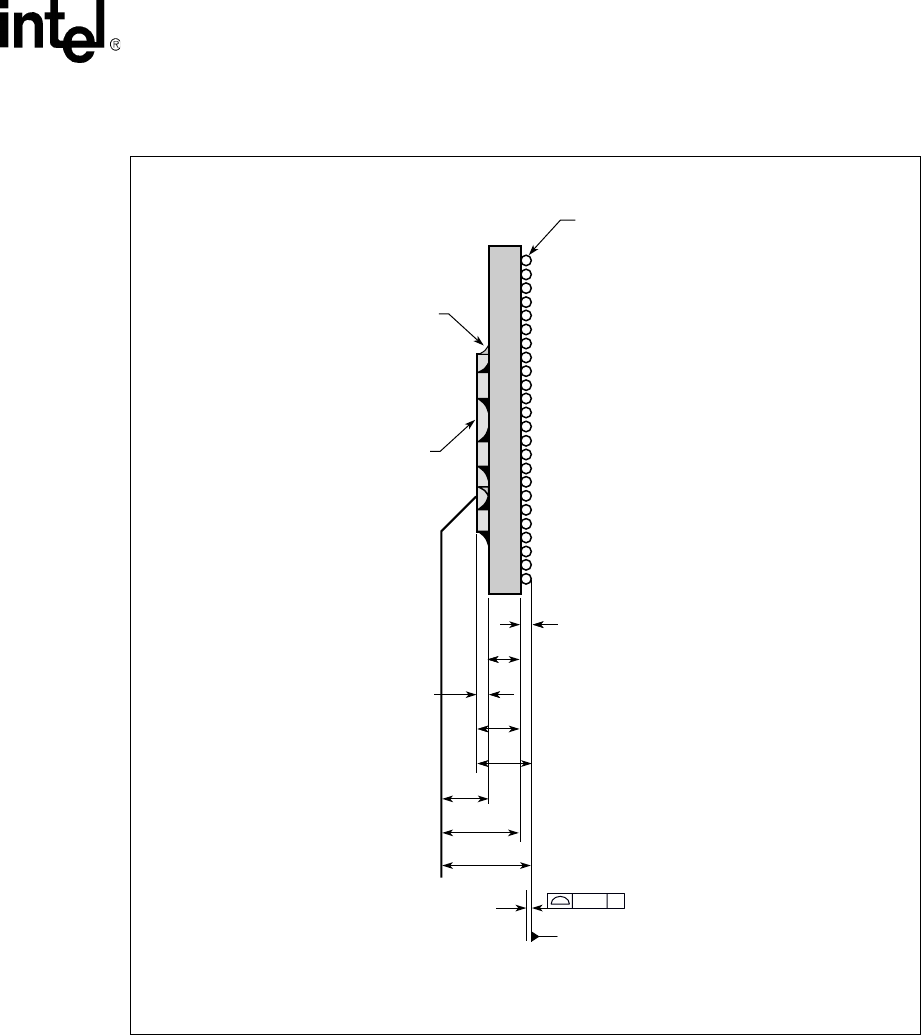

Figure 56. CBGA Package Side View Diagram
B0555-01
Seating Plane
0.15 C
(4.237 Max)
(3.619 Min)
(3.327 Max)
(2.809 Min)
(0.857 Max)
(0.779 Min)
(4.16 Max)
(3.43 Min)
(6X)
(3.24 Max)
(2.72 Min)
(6X)
(2.47 Max)
(2.03 Min)
0.81 ± 0.1
(0.77 Max)
(0.69 Min)
(6X)
Chip
C4 Encapsulant
Fillet
45L4867 (552)
Solder ball
Note: All dimensions are in mm.
