Installing the NXA-AVB/ETHERNET
A 12 VDC-compliant power supply can indirectly provide power to a Modero panel by routing power
through the NXA-AVB/ETHERNET Breakout Box. FIG. 5 shows a sample wiring configuration using
both an indirect or direct power connection for a video-capable Modero panel.
A 12 VDC-compliant power supply can also directly provide power through the unit to a target Modero
panel. FIG. 6 shows a sample wiring configuration for a non-video capable Modero panel.
NXA-AVB/ETHERNET Specifications (Cont.)
Rear Components: • 6-pin 3.5 mm Phoenix connector for in-bound (left/right channel) audio
• 4-pin 3.5 mm Phoenix connector for out-bound (from microphone) audio
• BNC connector (female) for Composite or Chroma (for video-capable
panels only)
• BNC connector (female) for luminance (for video-capable panels only)
• RJ-45 connector for Ethernet input from the control system
• 2-pin 3.5 mm Phoenix connector for in-bound power
Included Accessories: • Two 2-pin Phoenix connectors (41-5025)
• 4-pin Phoenix connector (41-5047)
• 6-pin Phoenix connector (41-5063)
• Rack Mount Kit (KA2250-40) with mounting bracket (62-2254-02)
Other AMX Equipment: • AC-RK Accessory RackMount Kit (FG515)
• Modero Table Top Cable (CA2250-50)

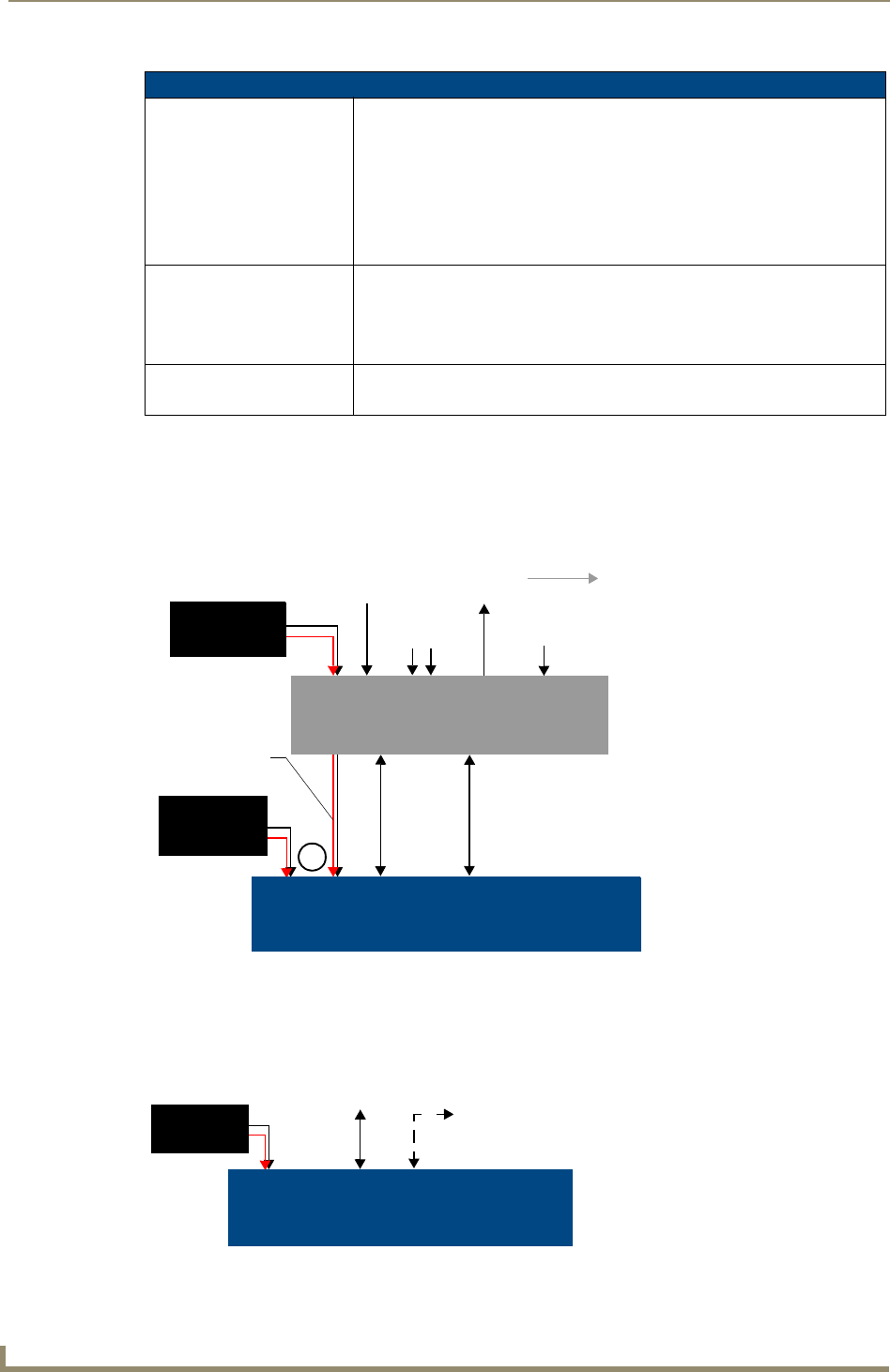

FIG. 5
Sample wiring configuration on video-capable panels using this breakout box
FIG. 6 Sample wiring configuration using non-video capable Modero panels
NXD/T Video-capable
Ethernet In
12 VDC power
(RJ-45)
Video In
(BNC)
Mic Out
(4-pin captive-wire)
Audio In
(6-pin captive-wire)
NXA-AVB/ETHERNET
Power
supplied via
NXA-AVB box
Audio/Video
(CAT5)
Line Level out
(to amplifier
or VOL card)
Touch Panels
or
Direct
Connect
Breakout Box
Ethernet
(rear)
(front)
(CAT5)
supply
Indirect
Connect
12 VDC power
supply
Direct
connect
NXD/T Non-video capable
Ethernet
(CAT5)
Touch Panels
12 VDC power
Audio (CAT5)
between the
NXA-AVB/ETHERNET
Breakout Box
supply
