7" Modero Widescreen Touch Panels
NXA-WC80211GCF 802.11g Wireless Card (FG2255-07)
These panels can also connect to a wireless network using the (optional) 802.11g Wi-Fi CF card. This
internal WIC (FIG. 15) can be purchased separately as a Wi-Fi upgrade kit from AMX.
This interface card (FG2255-07) is a 2.4 GHz Wi-Fi LAN CF Card which upgrades a Modero panel’s
wireless RF capabilities from 802.11b to 802.11g. This card also provides the end-user with several new
methods of wireless encryption and data security such as WPA and WPA2. In addition to being
backwards compatible with 802.11b networks, this card is installable within all current MVP, CV7, and
CV10 panels. To fully utilize these newer wireless security features, this card must be used in tandem
with the latest Modero firmware upgrade available at www.amx.com.
This card works with compatible 802.11b/g Wireless Access Points such as the NXA-WAP200G (which
uses a default SSID of AMX). Please follow your particular Wireless Access Point’s instruction manual
for the correct procedures to setup either a secured or unsecured connection. The following table lists the
specifications for the NXA-WC80211GCF.
802.11b Wireless Interface Card Specifications (Cont.)
Operating Environment: • Temperature: 0°C ~ 70°C (non-operating) and -15 ~ 80°C (storage)
• Humidity (non-condensing): 5% ~ 95% RH
Power Consumption: • TX power consumption: <
265 mA
• RX power consumption: <
165 mA
• Sleep Mode: 2 mA - 15 mA
Radio Data Rate: • 1Mbps, 2Mbps, 5.5Mbps, 11Mbps, Auto Rate
Receive Sensitivity: •@PER < 8%
11 Mbps: -83 dBm (max)
5.5 Mbps: -86 dBm (max)
2 Mbps: -89 dBm (max)
1 Mbps: -92 dBm (max)
RF Output Power: • 15 dBm +/- 1 dBm
• Channels 1 - 11 (North America)
Security: • WEP 64,128 bit, WPA/TKIP
Wireless Restrictions: • In R&TTE countries, such as France, the 802.11g frequency band is restricted to
2454 - 2483.5 MHz (2.4 - 2.4835 GHz) and a max power output of
100 mW EIRP outdoor.
It is recommended that any upgrade of internal equipment be done simultaneously in
order to reduce the risk of damage to internal components.

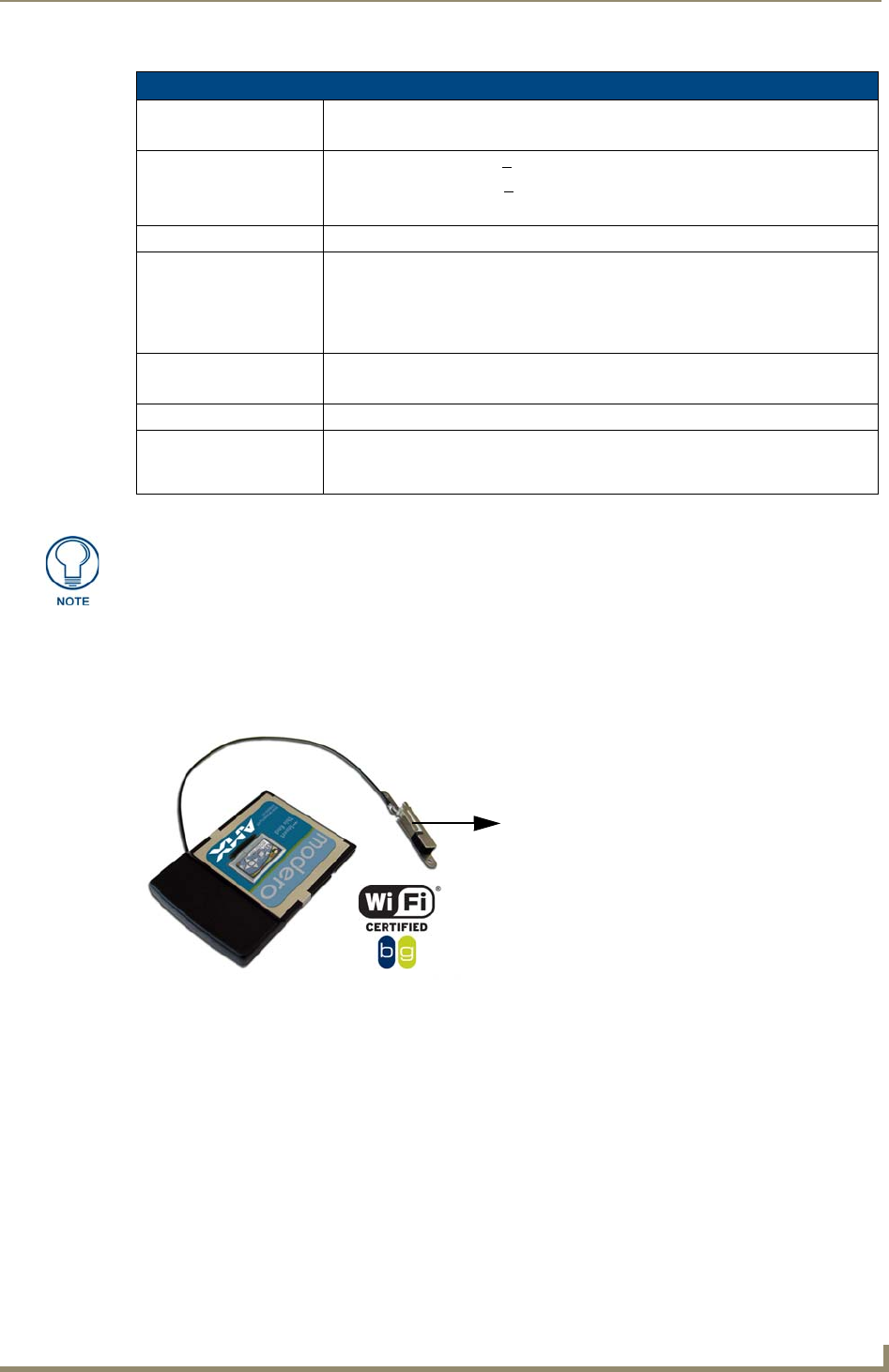

FIG. 15 NXA-WC80211GCF 802.11g wireless card
PIFA antenna
with metal plate
