7" Modero Widescreen Touch Panels
Step 2: Install the Compact Flash Memory card upgrade
1.
Discharge any static electricity from your body by touching a grounded metal object and then locate
the existing 64 MB Compact Flash card on the main board (FIG. 19).
2. Insert the tip of a grounded flat-head screwdriver into one of the card removal grooves (located on
either side of the existing card), and gently pry the card out of the slot (FIG. 20). Repeat this process
on the opposite card removal groove. This alternating action causes the card to "wiggle" away from
the on-board connector pins.
3. Grip the old card by its sides and then carefully pull it out of the slot.
4. Remove the new CF memory card from it’s anti-static bag.
5. Grip the sides of the new CF memory card and firmly insert it into slot opening (with the arrow
facing towards the pins) until the contact pins are completely inside the flash card and it is then
securely attached to the pin sockets.
6. To complete the upgrade process, either upgrade the remaining wireless card (Step 3) or close and
re-secure the enclosure using the procedures in Step 4: Close and Resecure the NXT Panel
Enclosure section on page 23.

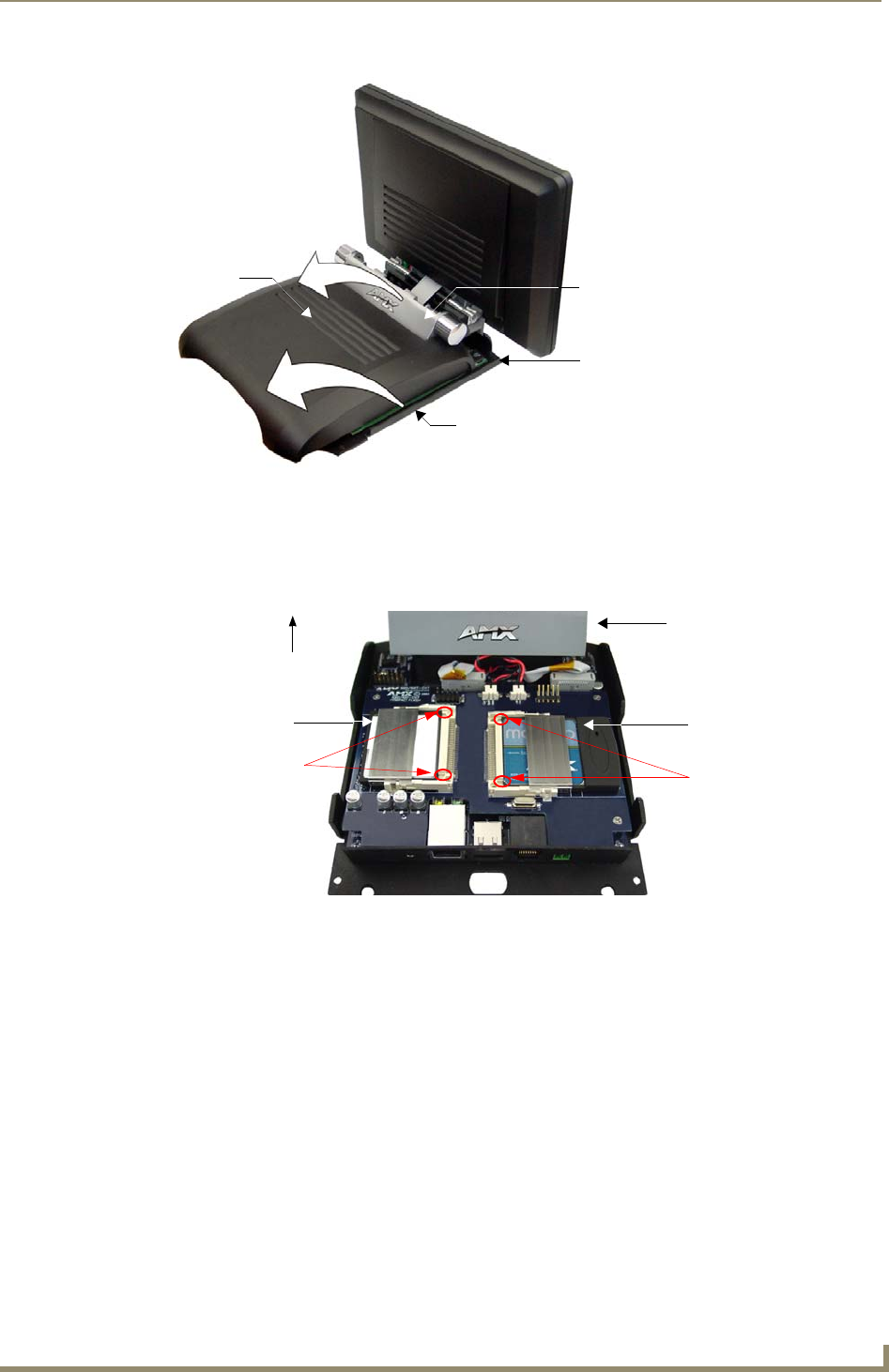

FIG. 18 Removal of the outer housing and wireless card location
FIG. 19 Location and orientation of the card slots (both CV7 panels)
Outer housing
Tilt Bracket cover plate
Base
Outer Housing
installation holes
(located on front panel)
(must be removed first)
Compact Flash
Memory Card (Slot 1)
Wireless CF Card
(Slot 2)
Card removal grooves
Card Removal Grooves
Front of panel
Tilt Bracket cover plate
