Chapter 1 Introduction Installation and Operation Manual
1-10 Functional Description ASMi-52 Ver. 2.5
Statistics Collection
ASMi-52 supports SHDSL and E1/T1 statistics collection.
Alarm Reporting
ASMi-52 alarms are relayed via a dedicated 6-pin terminal block connector.
SHDSL Repeaters
Up to eight SHDSL repeaters can be installed in line to increase the operation
range of the modem. ASMi-52 provides basic management of the repeaters.
SHDSL repeaters do not support ASMi-52 T1 products.
1.2 Physical Description

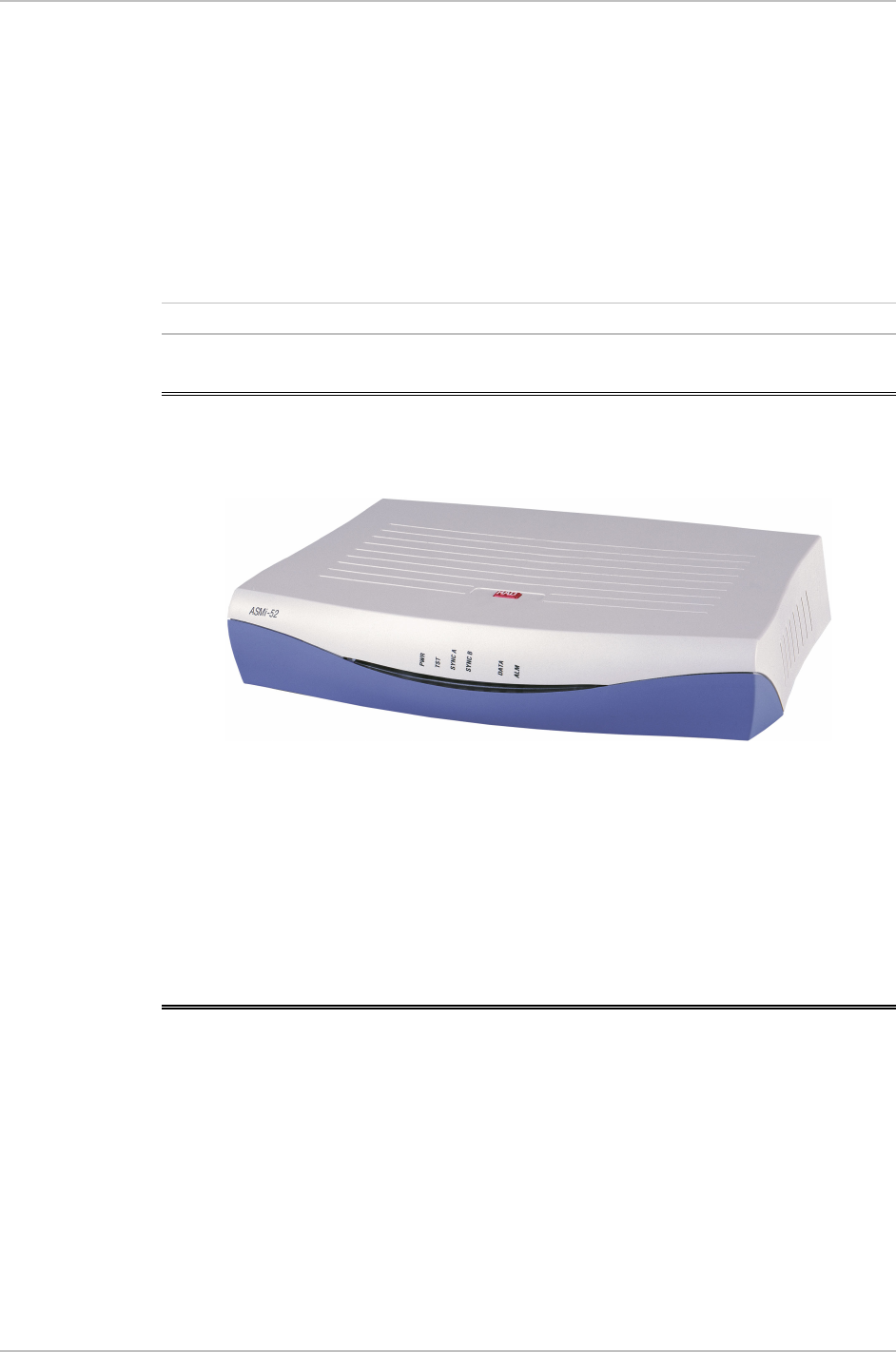

Figure 1-4 shows a 3D view of the ASMi-52 unit in the plastic enclosure.
Figure 1-4. ASMi-52, 3D View
The front panel includes several LEDs, which display the status of power, data flow
and provide diagnostics. For a detailed description of the front panel, see
Chapter 3.
The rear panel includes an AC/DC power connector, a DTE connector, a line
connector, a 10/100BaseT port, a V.24 terminal connector, and an alarm relay
port. The ASMi-52 rear panel is described in greater detail in Chapter 2.
1.3 Functional Description
This section provides a functional description of ASMi-52 in the form of block
diagrams (Figure 1-5 and Figure 1-6).
Not
e
