Chapter 3 Operation Installation and Operation Manual
3-2 Controls and Indicators ASMi-52 Ver. 2.5
ASMi-52

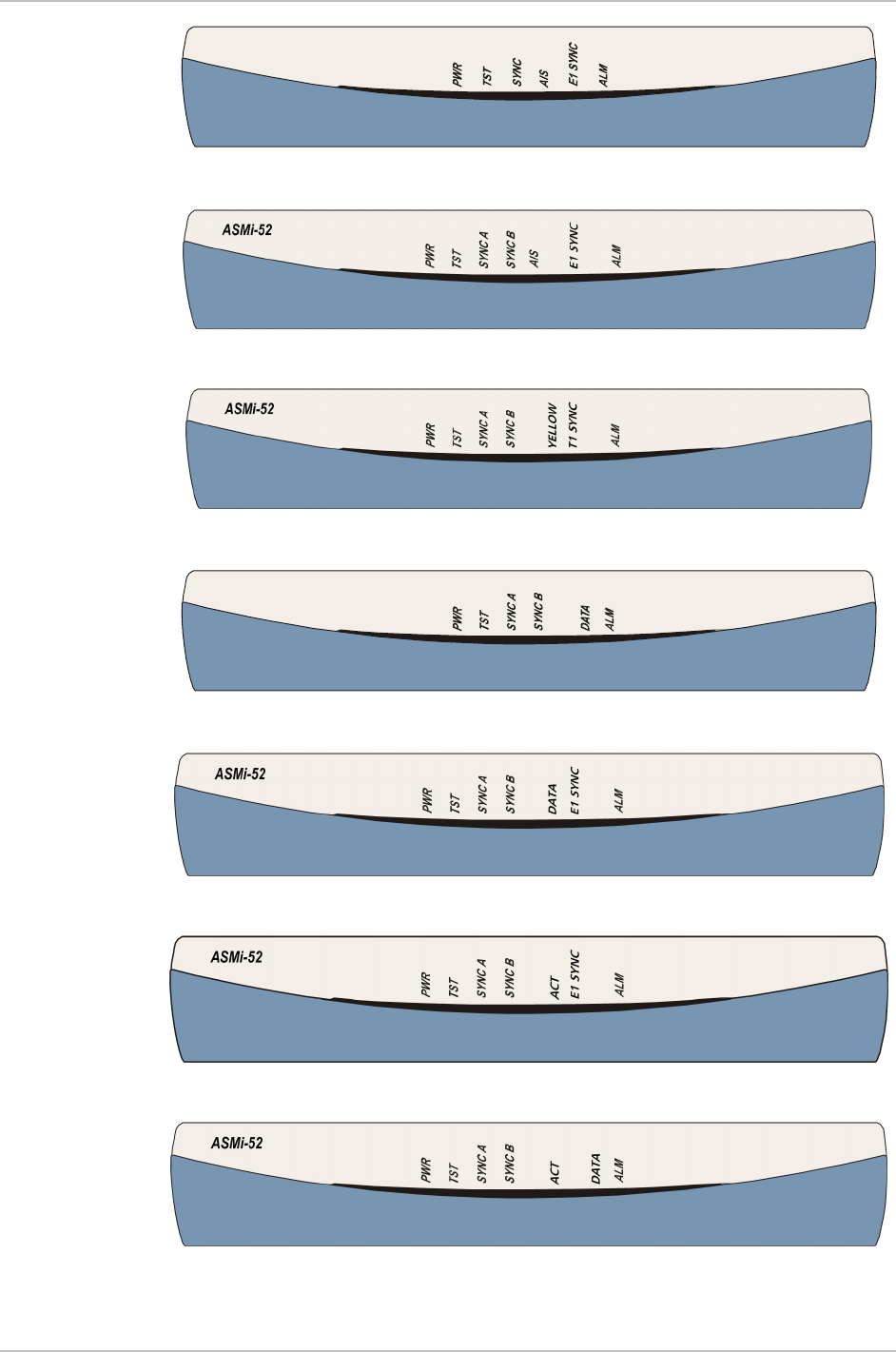

Figure 3-1. ASMi-52 Front Panel, E1 Interface (2 Wire)
Figure 3-2. ASMi-52 Front Panel, E1 Interface (4 Wire)
Figure 3-3. ASMi-52 Front Panel, T1 Interface (4 Wire)
ASMi-52
Figure 3-4. ASMi-52 Front Panel, DTE Serial Interface (4 Wire)
Figure 3-5. ASMi-52 Front Panel, E1+DTE Serial Interface (4 Wire)
Figure 3-6. ASMi-52 Front Panel, E1+Ethernet Interface (4 Wire)
Figure 3-7. ASMi-52 Front Panel, DTE Serial Interface+Ethernet (4 Wire)
