Global Positioning System (GPS)
NMEA Messages Over-The-Air (Remote)
To configure the PinPoint to send NMEA reports to a remote server, you will need to set 3 com-
mands: *PPIP, *PPPORT, and *PPGPSR.

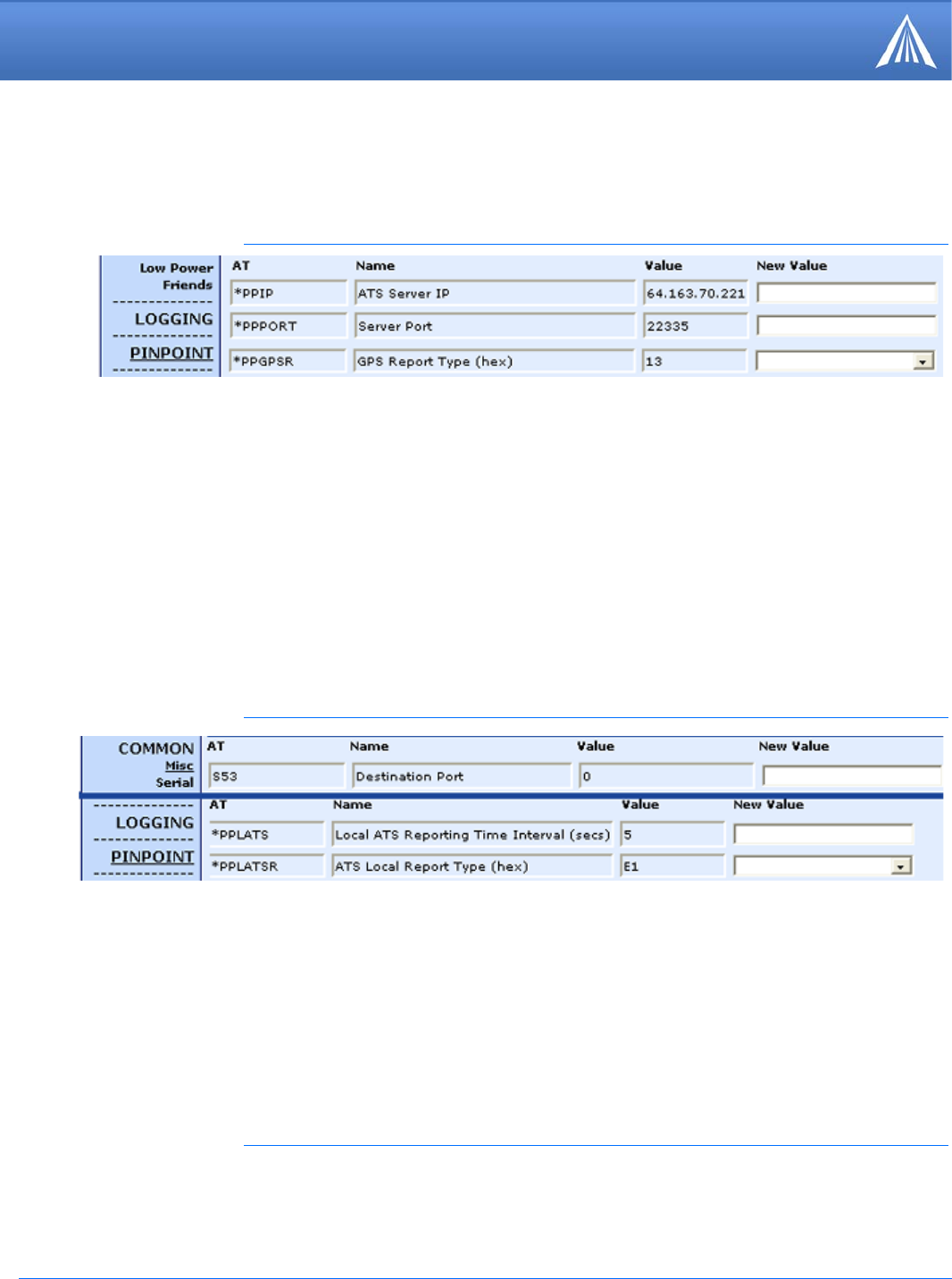

FIGURE 24. Wireless Ace: NMEA Remote Reports
1. Set the IP (*PPIP) and port (*PPPORT) to the IP and port of the server to which you want the
reports sent.
2. Set the GPS Report Type (*PPGPSR) to your preferred NMEA sentence format.
E0 - Output the GGA and VTG sentences.
E1 - Output the GGA, RMC, and VTG sentences.
NMEA Messages over a Local Connection (PPP)
FIGURE 25. Wireless Ace: NMEA Local Reports
1. Set the port (S53) to the local port to which you want the reports sent. The local IP will auto-
matically be used. S53, in Wireless Ace, is part of the Misc menu option.
2. Set the ATS Local Report Type (*PPLATSR) to your preferred NMEA sentence format.
E0 - Output the GGA and VTG sentences.
E1 - Output the GGA, RMC, and VTG sentences.
3. Set Local ATS Reporting Time Interval (*PPLATS) to the number of seconds you want as an
interval between reports being sent.
TAIP Emulation Configuration
The TAIP emulation functionality allows the PinPoint to operate in a limited manner with clients
which only understand the Trimble ASCII Interface Protocol (TAIP).This emulation is enabled by
Local reports are sent to the local IP address of the computer or device connected to the serial port
of the
PinPoint using PPP. To configure the modem to send to the local IP, you will need to set 3
commands: *S53, *PPLATS, and *PPLATSR.
1000
E0-NMEA GGA+VTG
1000
5
E1-NMEA GGA+VGA+RMC
