Barco HDX Projector User Manual



10. Layout
The Size window opens.

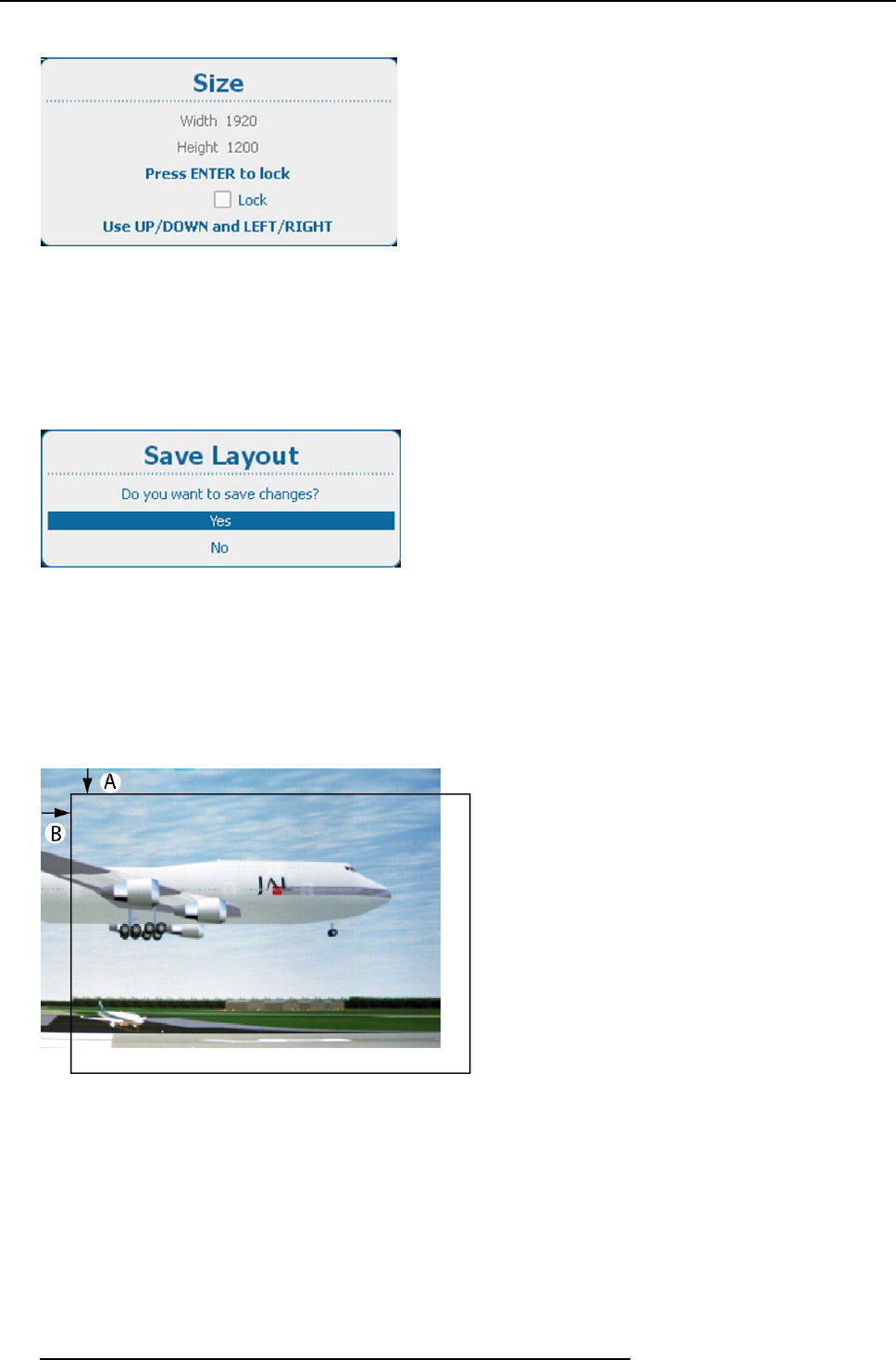

Image 10-9
Size window
3. To keep the current aspect ratio, press ENTER to check Lock.
Once Lock is checked, the width and the height will follow each other when changing one of the dimensions.
4. Use the or key to change the height and the or key to change the width.
5. When the desired size is reached, press EXIT.
A Sa ve Layout window opens.
Image 10-10
Save layout
6. Use the or key to select Yes and press ENTER to save.
Select No if you want to quit without saving the current position.
10.3.3 Main window position
What can be done?
The main window can be repositioned on the screen. The upper left corner is the reference.
Image 10-11
Positioning the window
How to position
1. Press Menu to activate the menus and select Layout Main window Position.
138
R5905032 HDX SERIES 02/03/2015
