3. Physical installation
How to mount

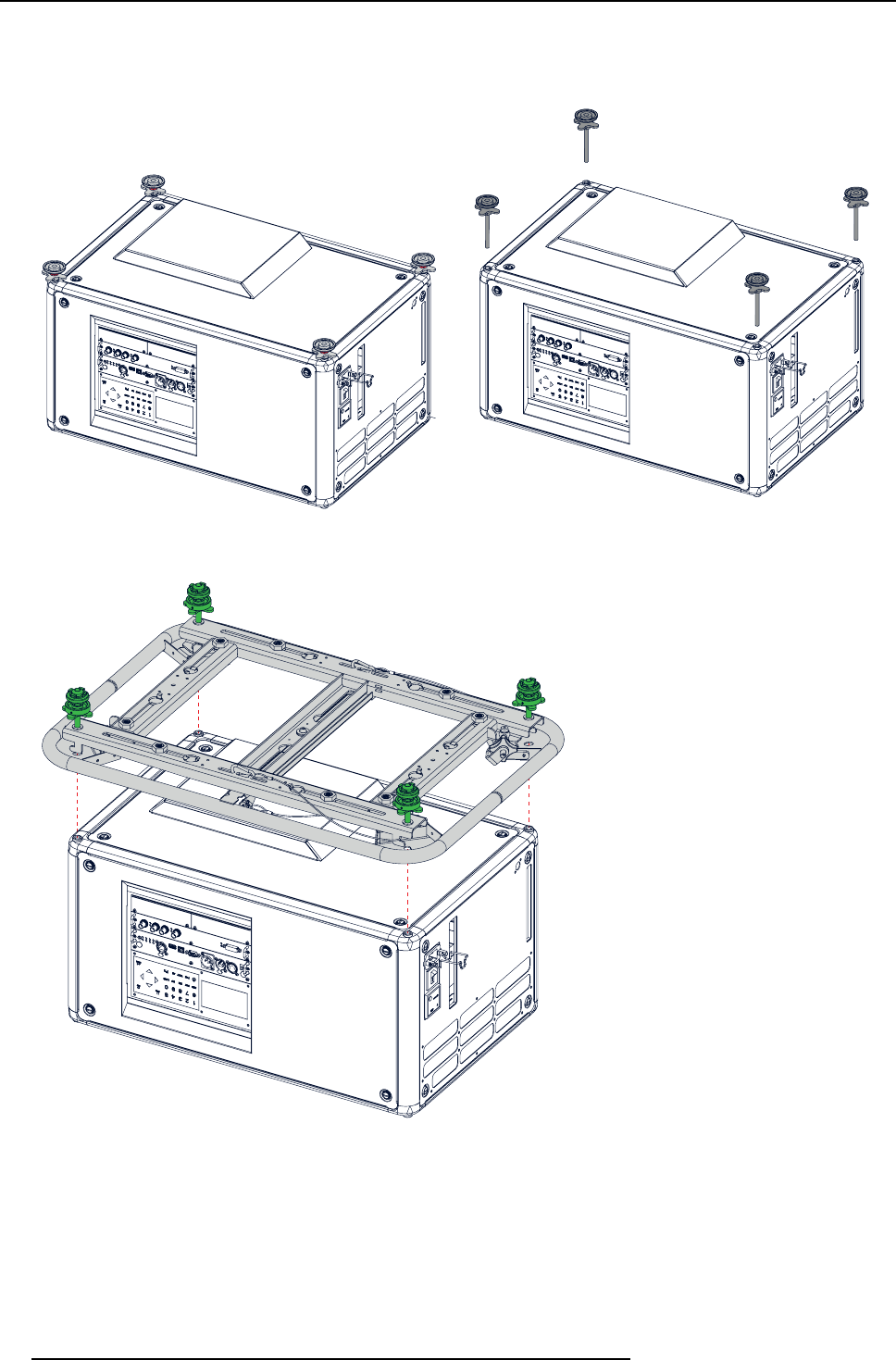

1. Turn the projector upside down.
2. Turn out the 4 feet.
Image 3-45
Remove feet
3. Turn out the feet of the carry handle as far as possible.
Image 3-46
Mount carry handle
4. Place the carry handle on the projector as illustrated. Adjustment knob to the back of the projector.
Make sure that the mounting holes matches the holes in the projector.
5. Insert a bolt in each corner and turn in these bolts.
40
R5905032 HDX SERIES 02/03/2015
