12. Alignment

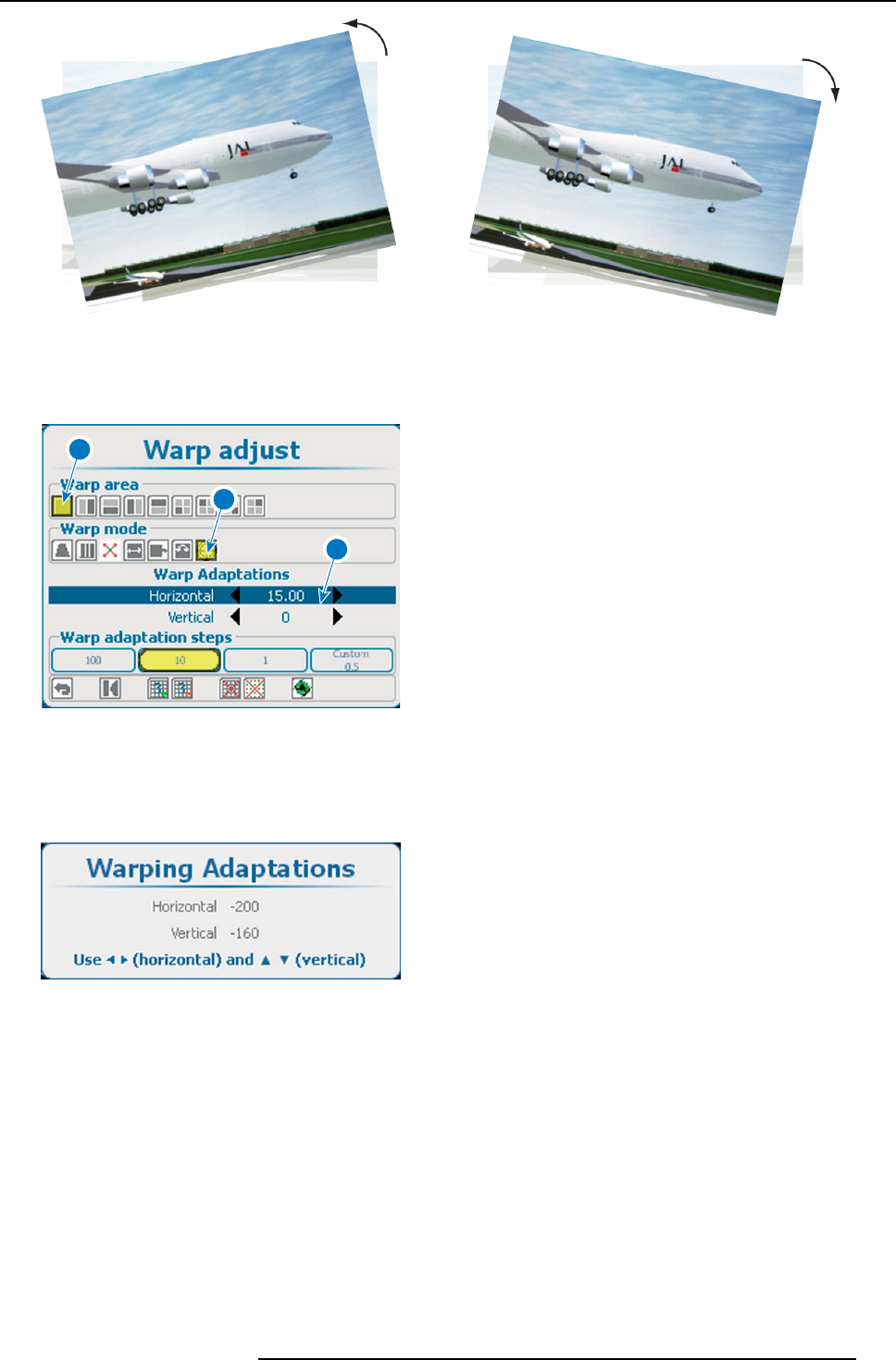

Image 12-51
Rotation
Selecting rotation point
1. Select full image as warp area (1).
1
2
3
Image 12-52
Rotation point, selection
2. Use the arrow keys to select Rotation point (2).
3. Select Warp Adaptations and use the arrow keys to move rotation point to the desired position (3).
Or,
press ENTER when an item is selected and use the 4 arrow keys to adjust.
Image 12-53
Warping, scaling
4. Continue with the rotation.
Rotate around the rotation point
1. Select the 2 x 2 adjustment level. See "Setting the warping level", page 175.
2. Select full image as warp area.
