Barco HDX Projector User Manual



E. Stacking HDX projectors
Inclination

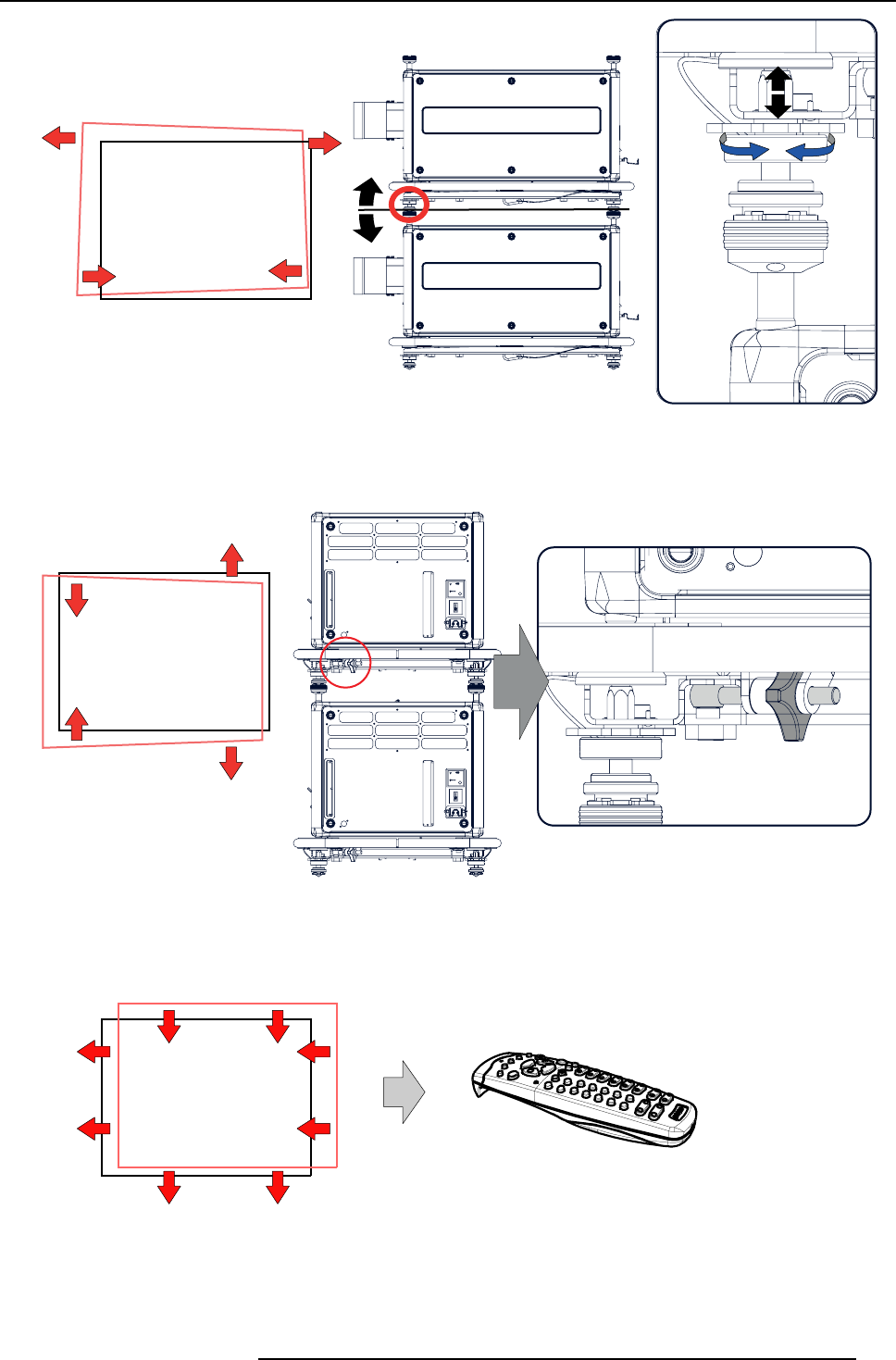

Image E-7
Stacked projectors, inclination
5. If necessary, adjust the skew of the stacked projector with respect to the reference projector by turning the Hand screw in or out.
The hand screw is located at smallest side of the carrying handle (front or back). Adjust until the outline of the hatch pattern is
most symmetric with the reference hatch pattern.
Skew
Image E-8
Stacked projectors, skew
6. Shift the hatch pattern horizontally and vertically until the outline of the hatch pattern is most symmetrically placed with respect
to the reference hatch pattern.
Note: Note that the “Shift” function is motorized, which means that you have to ac cess the projector software, via the local
keypad or remote control unit, to operate the “Shift” function.
Shift
Image E-9
Stacked projectors, shift
7. Zoom the hatch patte
rn in or out until the outline of the hatch pattern matches exactly the outline of the reference hatch pattern.
Note: Note that the “Zoom” function is motorized, which means that you have to access the projector software, via the local
keypad or remote control unit, to operate the “Zoom ” function.
R5905032 HDX SERIES 02/03/2015
325
