3. Physical installation
3.7 Suspension of the projector with rigging clamps
Rigging points and rigging clamps
When a carrying handle is mounted at the bottom side of the projector, eight slots are available to mount rigging clamps. Four slots
are longitudinally (1) oriented and four slots are transversely (2) oriented. Each slot contains a rigging point of which the position in
the slot can be adjusted depending on the size of the truss installation. The rigging clamps can be attached to those rigging points,
which allows an easy and fast physical setup of the projector in a hanging conguration.

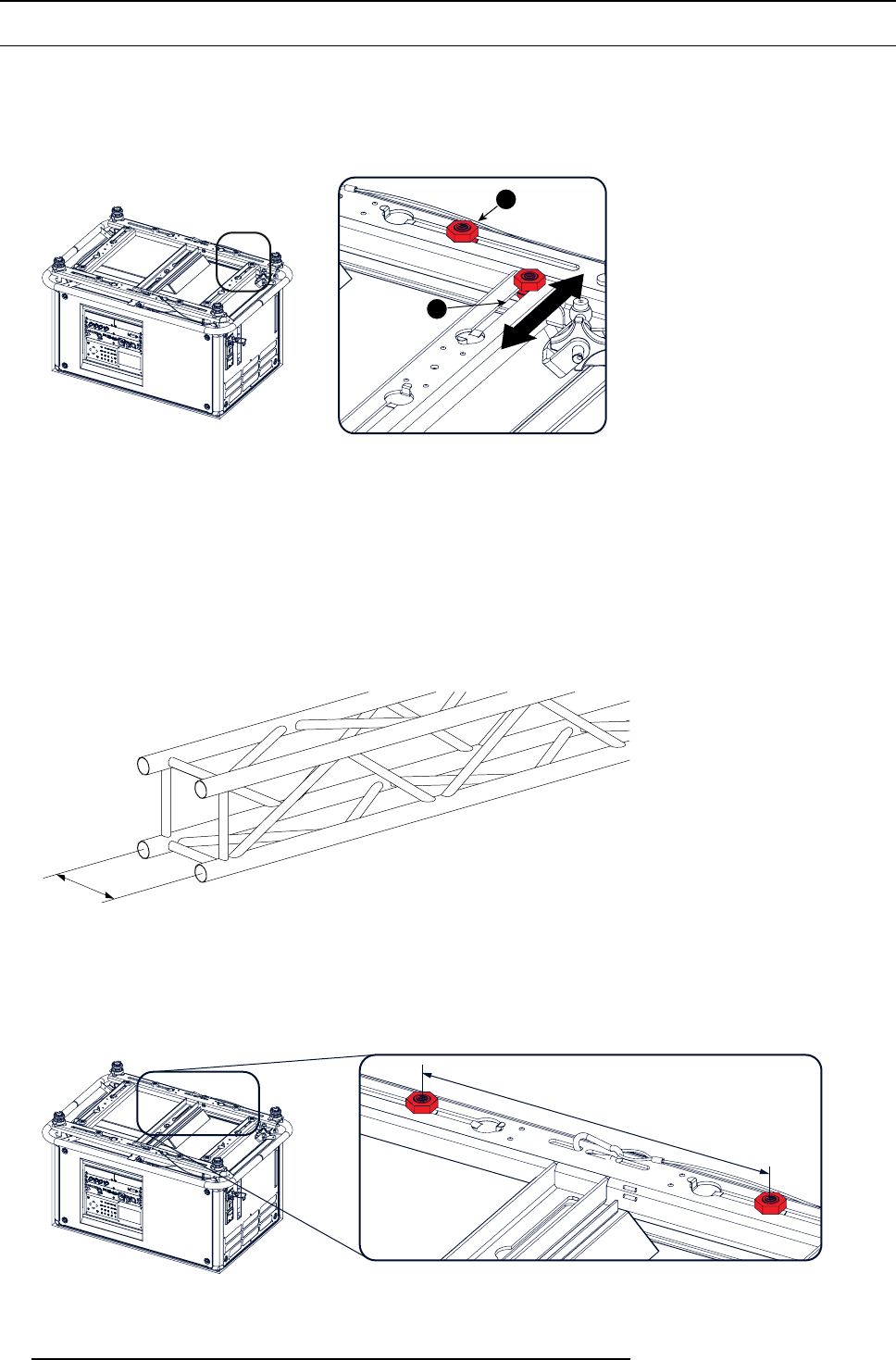

1
2
Image 3-49
Rigging points
Necessary tools
Open end spanner 24 mm
Open end spanner 17 mm
Necessary parts
4 rigging clamps
How to install and use the rigging clamps
1. Measure the distance, center tube as reference, between the two used support bars of the truss.
X mm
Image 3-50
Truss, example
2. Turn the projector upside down and slide the rigging points on there place in the slots, according the measured distance and
secure this position. To release the nuts of the rigging points use a 24 mm open ended spanner. Ensure that the rigging points
are symmetrically lined up, so that the projector will hang in balance.
Warning: Be careful while working with heavy loads.
Warning: Always secure the rigging points after adjustment.
X mm
Image 3-51
Rigging points, distance
