14. Service
Voltages
Temperatures
Fan speeds
All tables are built up in an identical way. The current measured value is surrounded with the low and high error and warning limits.
Once one of these values are crossed the threshold an error or warning message is logged or displayed on the local LCD screen.
How to display an overview
1. Press Menu to activate the menus and select Service Diagnosis Measurements.

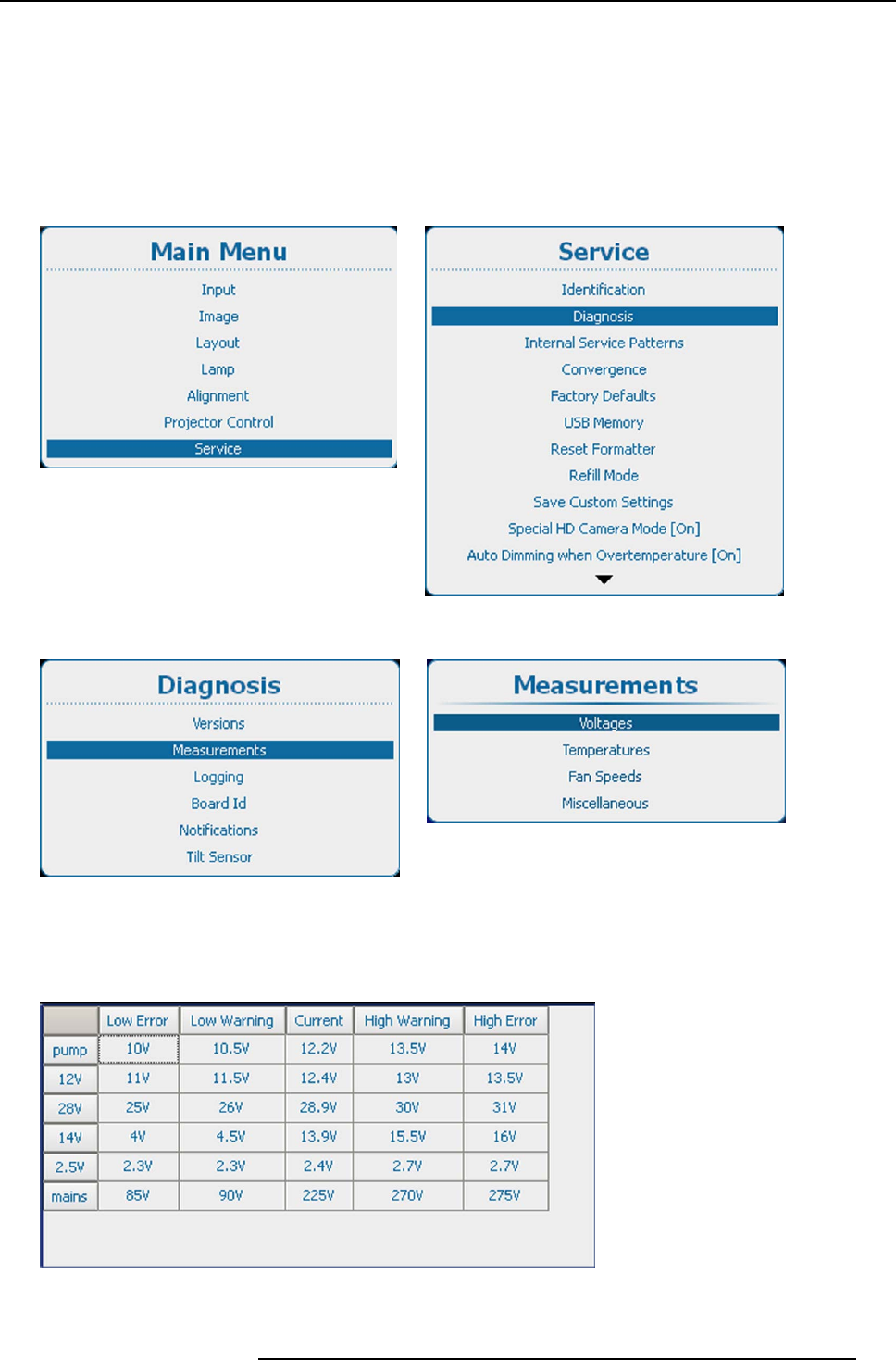

Image 14-8
Main menu, service
Image 14-9
Service, diagnosis
Image 14-10
Diagnosis, measurements
Image 14-11
Measurements, voltages
2. Use the or key to select Voltages and get an overview of the voltages or to select Temper atures to get an overview of the
internal temperatures or to select Fan Speeds to g
et an overview of current speeds of the different fans or to get an overview of
miscellaneous items such as pressure altitude etc.
Image 14-12
Overview voltages
