14. Service
14.5 Convergence
What can be done?
The convergence patterns can be used to check the convergence alignment of red, green and blue. If there is a misalignment of at
least one 1 pixel, an electronic realignment is possible.
Mechanical realignment of the convergence can only be done by a qualied service technician.
How to display the convergence settings

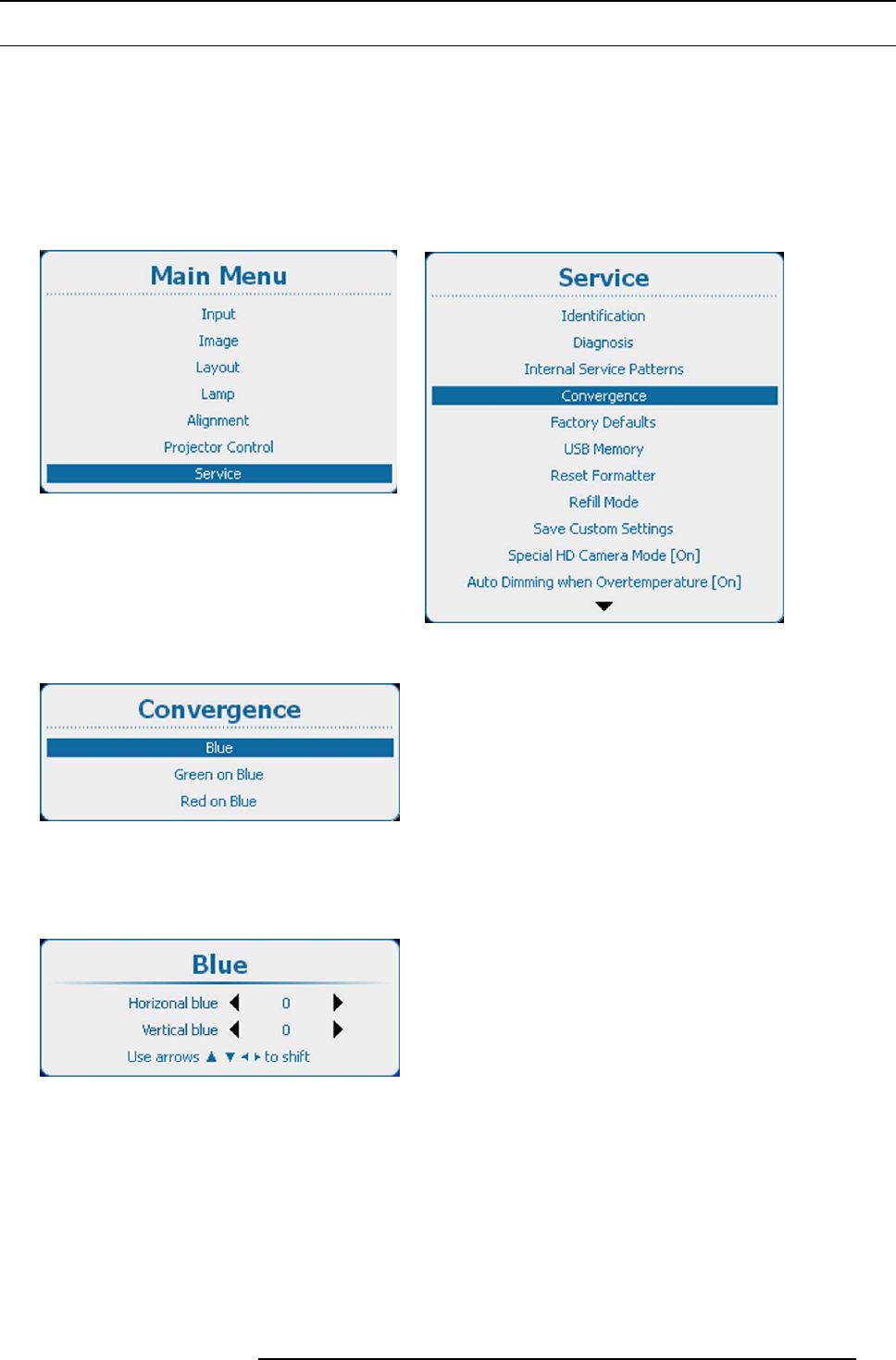

1. Press Menu to activate the menus and select Serv ice Convergence.
Image 14-48
Main menu, service
Image 14-49
Service, convergence
Image 14-50
Convergence pattern
2. Use the or key to select a pattern.
3. Press ENTER to start the adjustment.
Image 14-51
Convergence adjustment
