14. Service
2. Use the or key to select the desired internal service pattern and press ENTER to open a selection menu.
Input patterns
Input items in the Internal Service Patterns menu are only shown when the corresponding slot contains an input board.

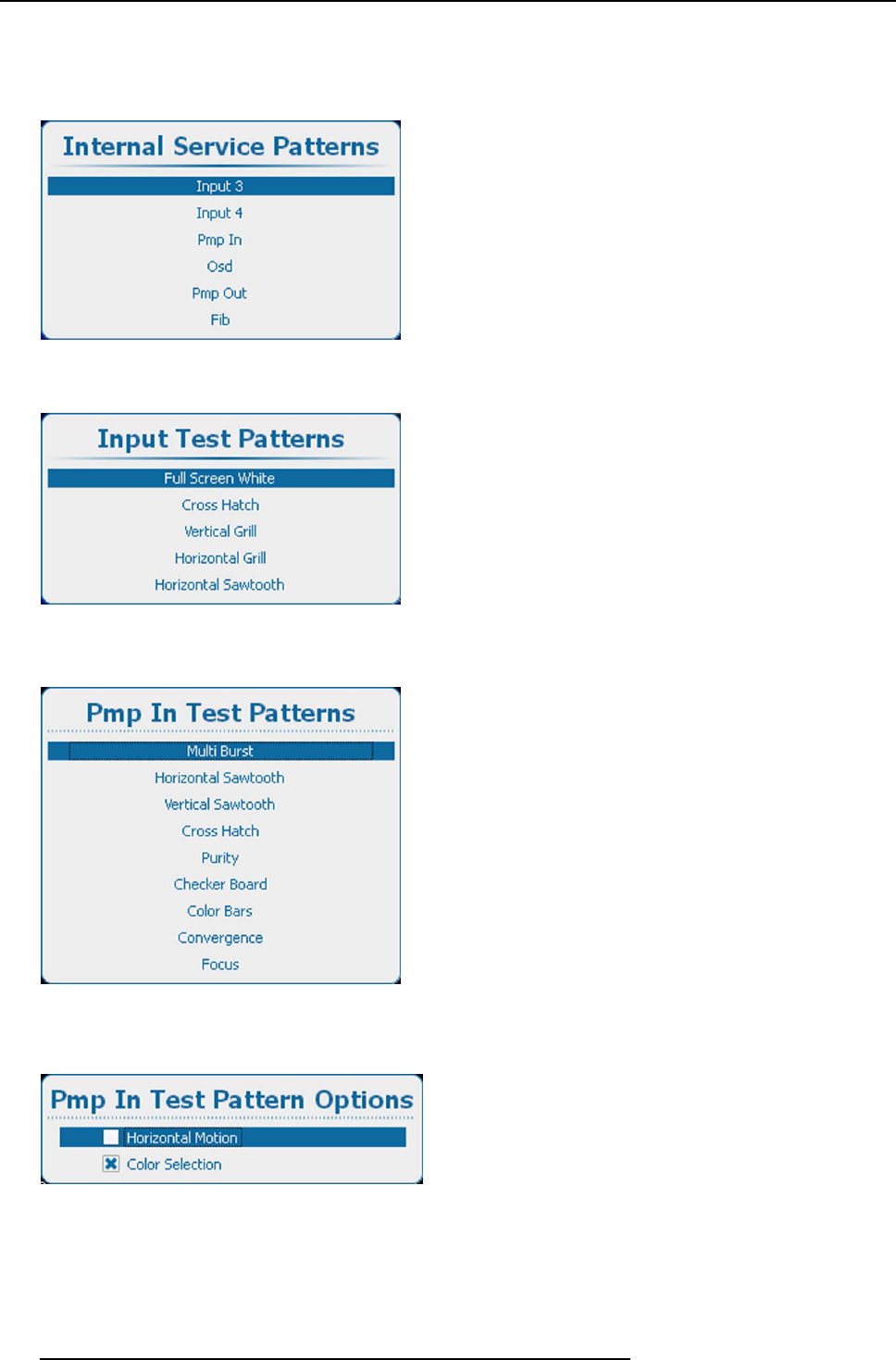

Image 14-37
Internal service patterns, input
Press ENTER to display the list of possible patterns.
Image 14-38
Input test patterns
PmpInpatterns
Image 14-39
Pmp In test patterns
To change the options for the selected pattern, use he key to open these options. The number of options can change for the
different patterns.
Image 14-40
Pmp In test pattern options
Use the or key to select an option and press ENTER to select. The checkbox in front of that item will be checked.
