Barco HDX Projector User Manual



3. Physical installation
2
F

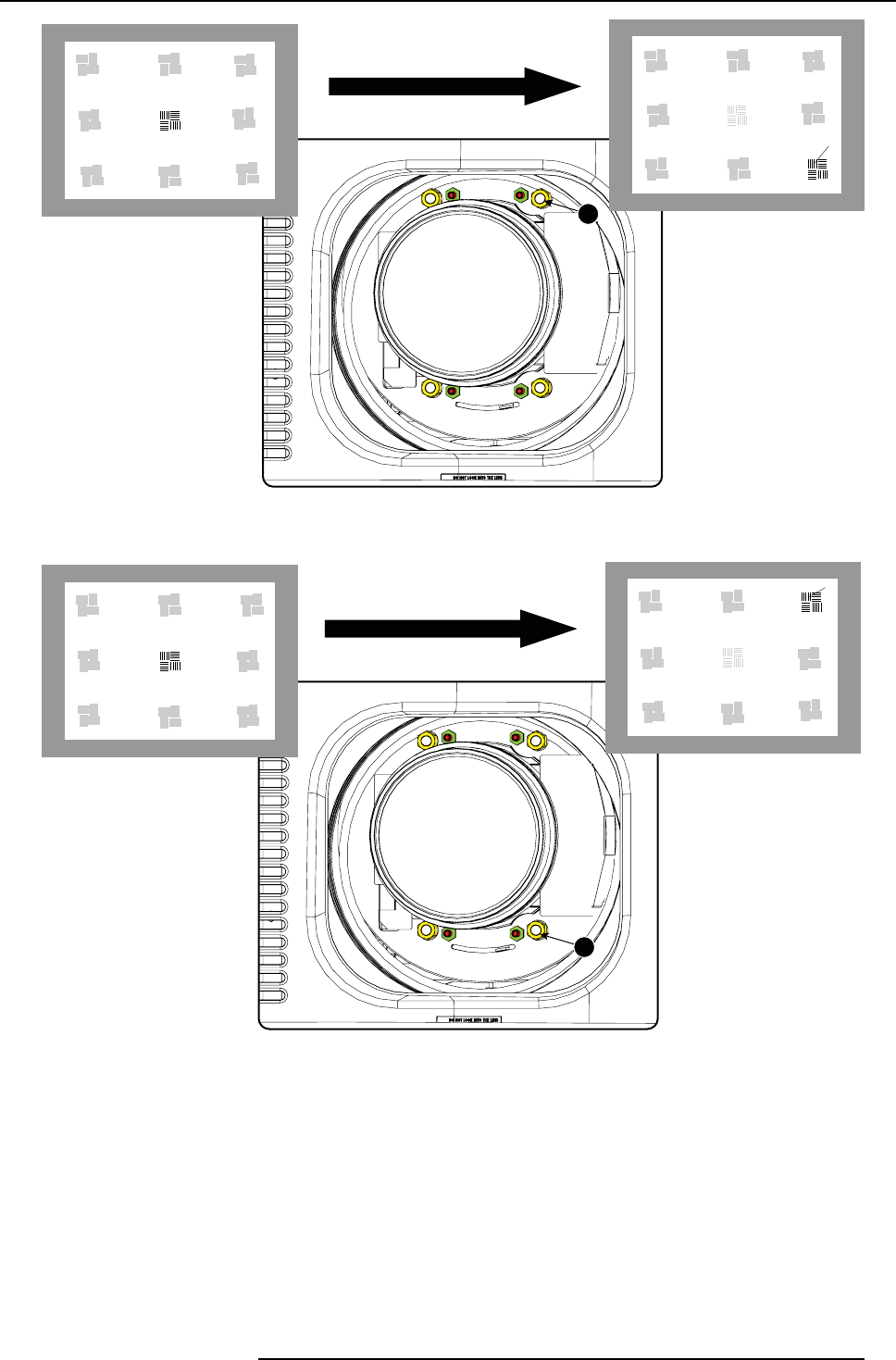

Image 3-39
Right bottom focusing
8. Sharpen top right corner of the screen by adjusting nut 3
3
F
Image 3-40
Corner focusing
9. Repeat from step 6 until the projected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen.
How to xtheScheimpug
Start the xation as follows (steps must be followed strictly) :
1. Turn in set screw A, B and C. Tighten lightly (by hand).
Tip: Any movement of the image will affe ct the S cheimp ug adjustment
2. Fasten lock nuts a, b and c.
3. Turn in set screw D lightly (by hand) allowing the image to move slightly (1/3 to 1/2 of a square).
R5905032 HDX SERIES 02/03/2015
37
